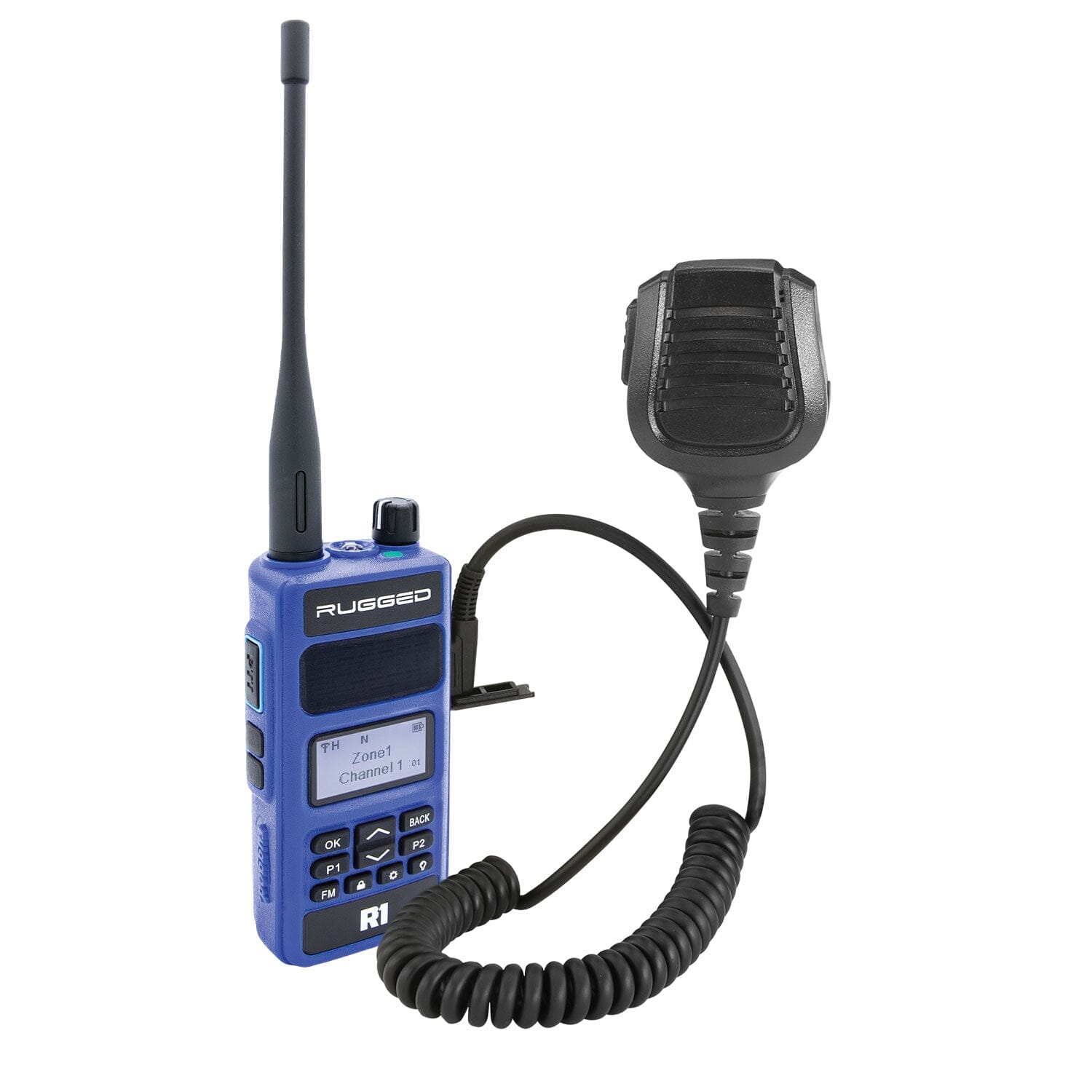

Bundle - Rugged R1 Business Band Handheld with Hand Mic
Easy to grab, hard to let go! Increase team efficiency with the perfectly-sized Rugged R1. Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.
This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!
Always go back to your home channels with customizable channel presets. Never lose power with the included charge-on-the-go USB cable, and light the way with the R1's built-in safety flashlight. Click here to view the user guide.

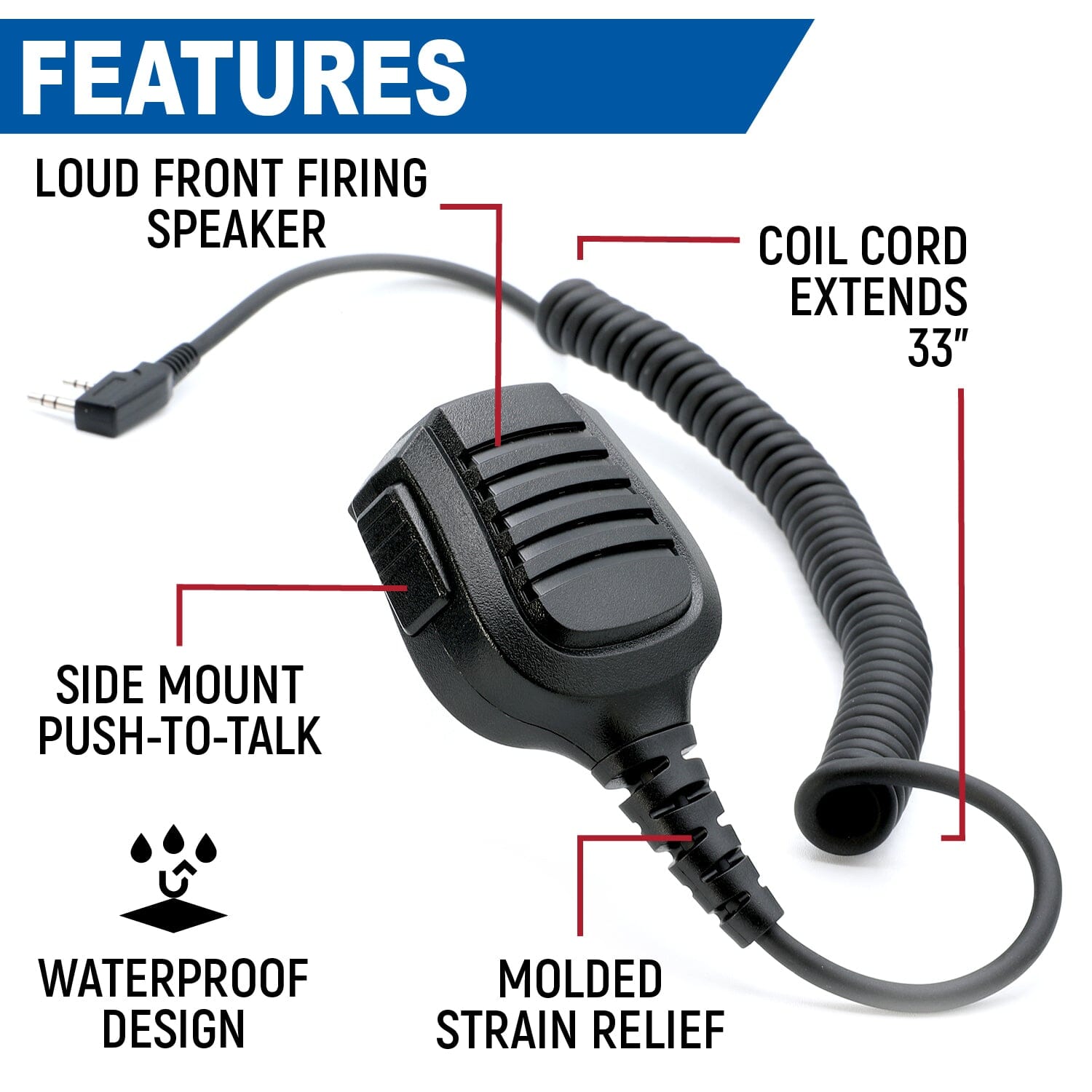

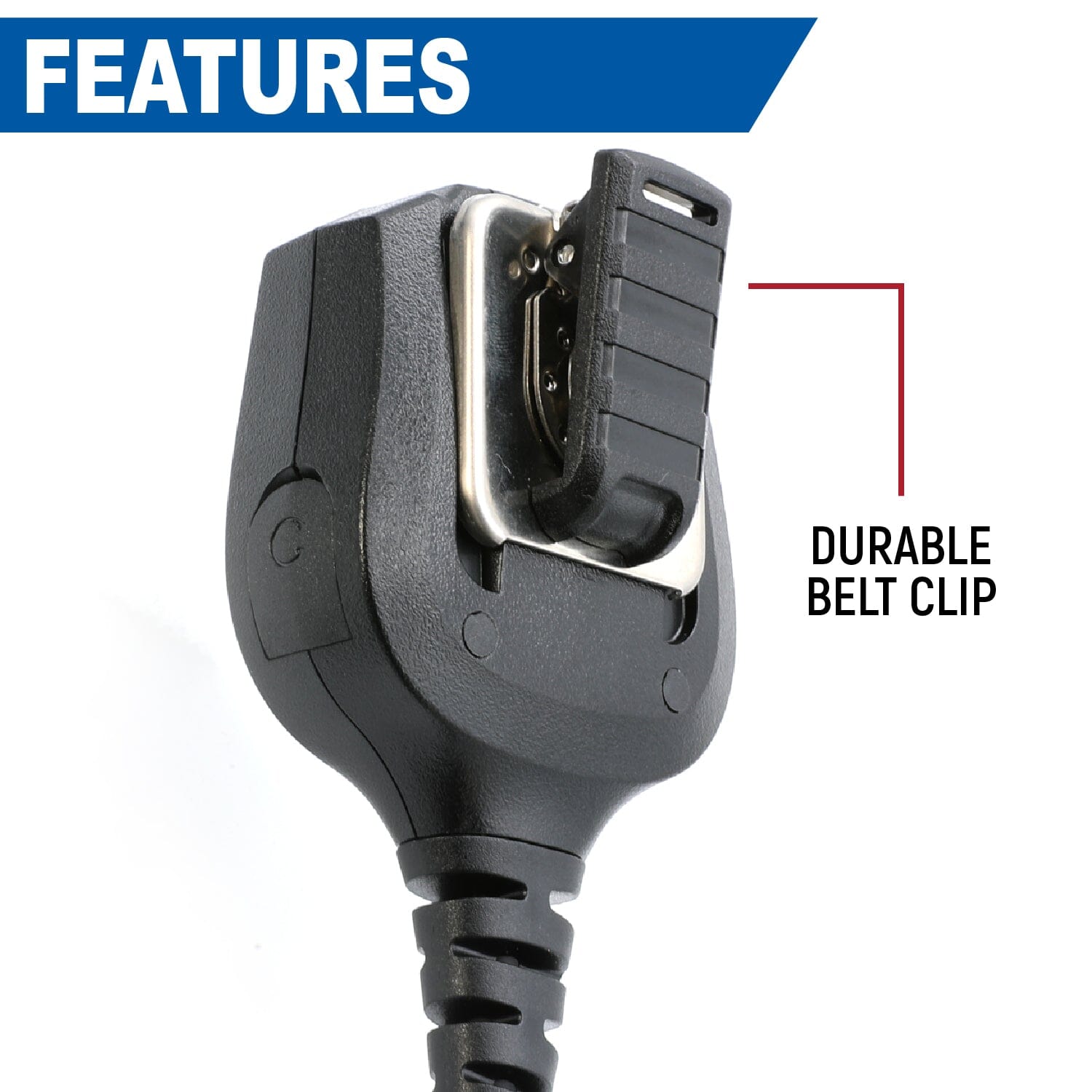

Bundled with our waterproof Rugged Radios Speaker Hand Mic, this GMR2 kit offers versatility and clear communications.
Easy to grab, hard to let go! Increase team efficiency with the perfectly-sized Rugged R1. Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.
This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!
Always go back to your home channels with customizable channel presets. Never lose power with the included charge-on-the-go USB cable, and light the way with the R1's built-in safety flashlight. Click here to view the user guide.
Bundled with our waterproof Rugged Radios Speaker Hand Mic, this GMR2 kit offers versatility and clear communications.
Features:
- *Works with all business analog radios and DMR Digital
- Versatile Dual Band VHF/UHF
- Crystal-clear digital DMR
- Large easy-to-read LED Display

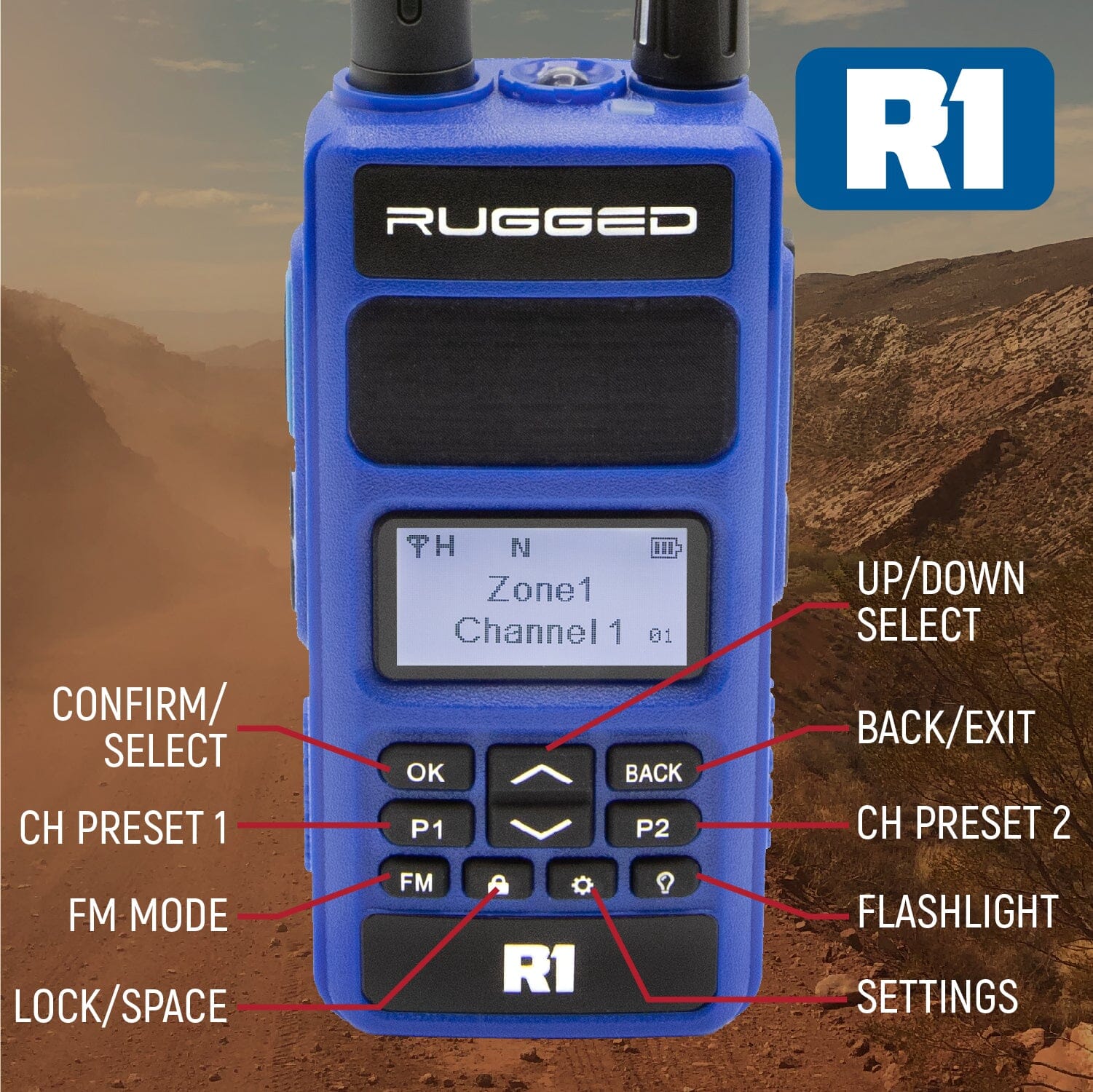

- Easy-to-use, Intuitive Keypad and Interface
- Text Messaging on digital channels
- Dual monitor (listen to two channels at once)
- Performance-tuned antenna

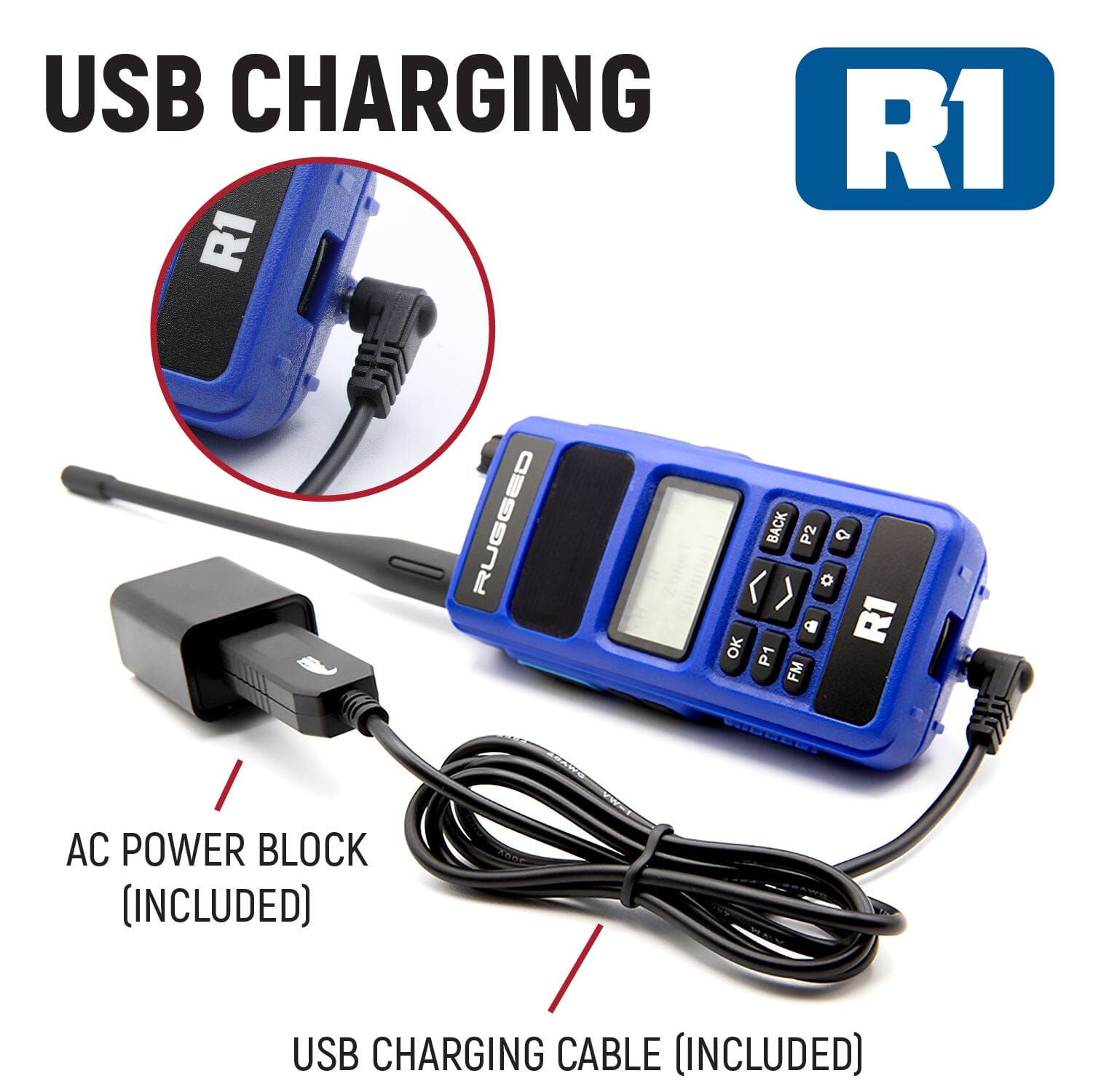

- Charge-on-the-go USB cable included
- Rechargeable Li-ion battery
- Powerful 5-Watt transmitter

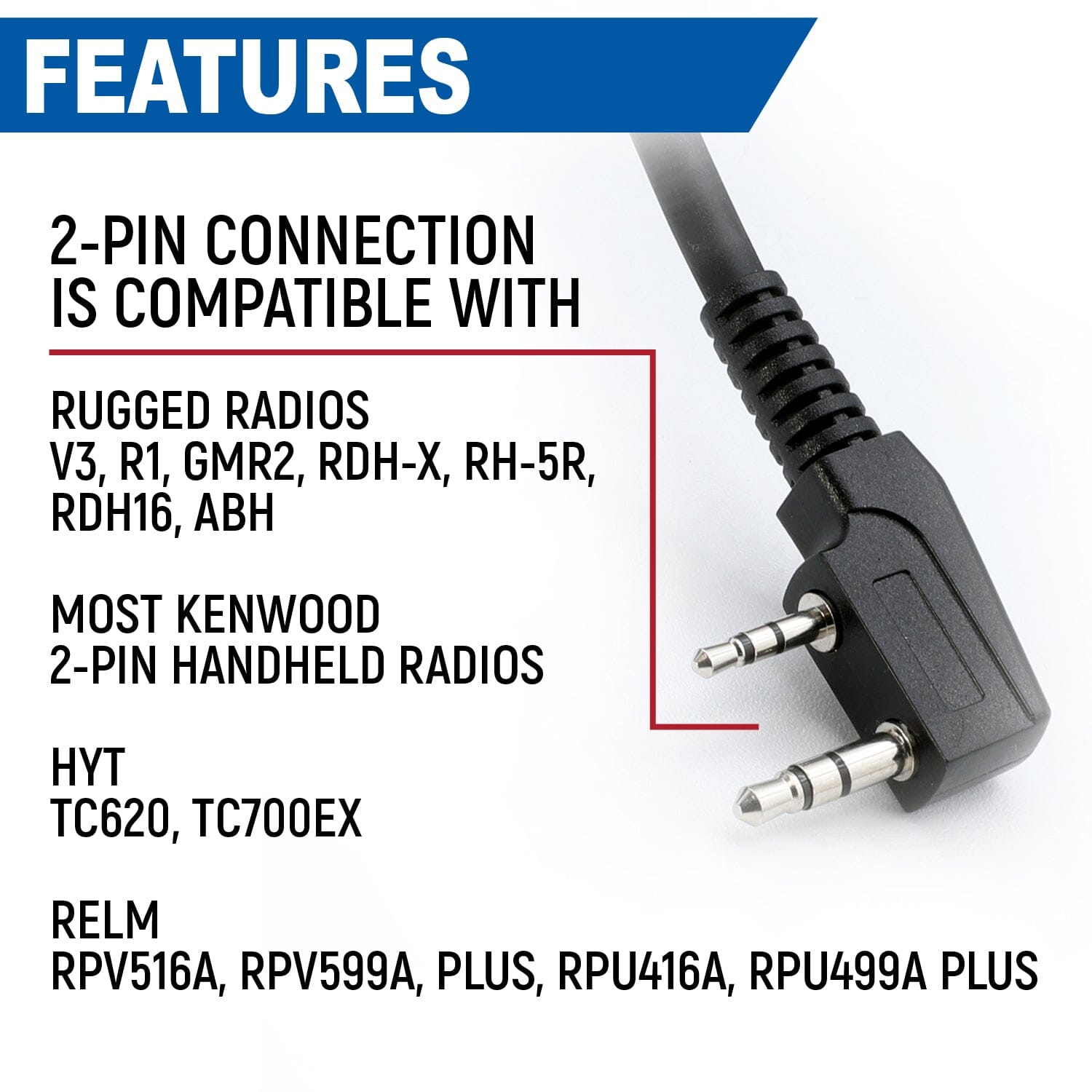

- Works with 2-Pin accessories

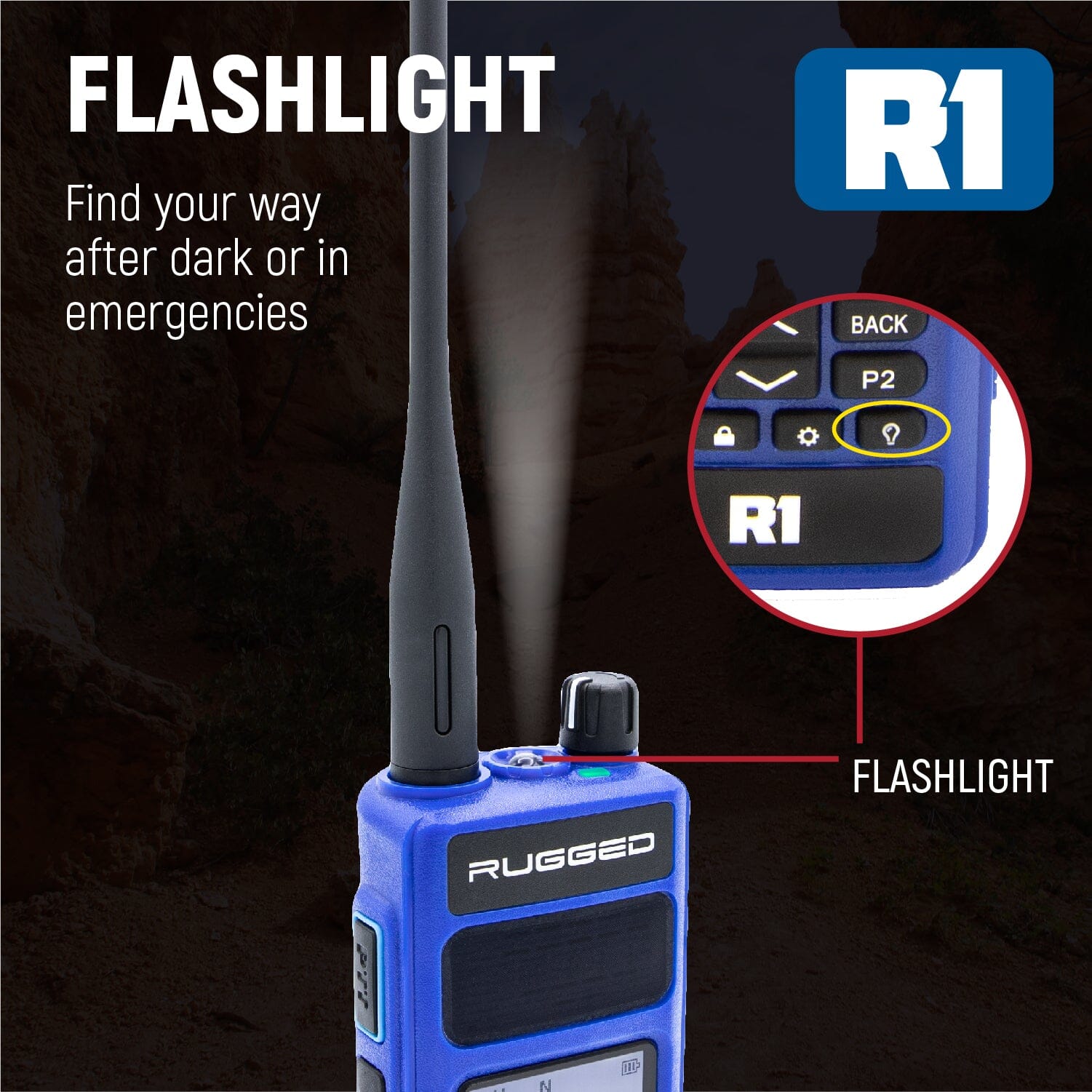

- Built-in safety flashlight
- 1 Touch FM Radio
- Lockable controls
- 1,024 Channel & 250 Zone capacity
Includes:
- R1 handheld radio

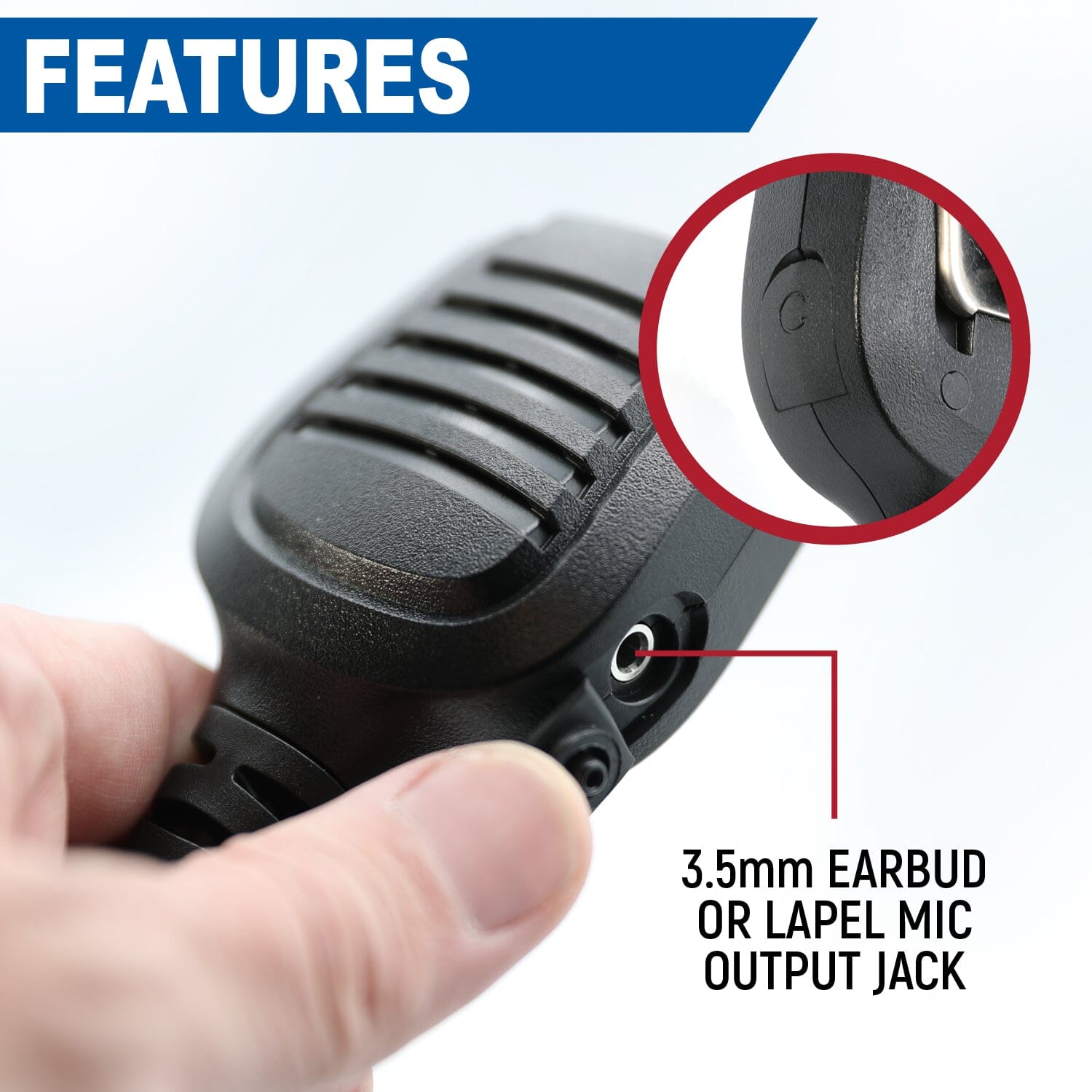

- Waterproof Hand Mic
- Rechargeable battery
- USB charging cable / power adapter
- Belt clip
- Antenna

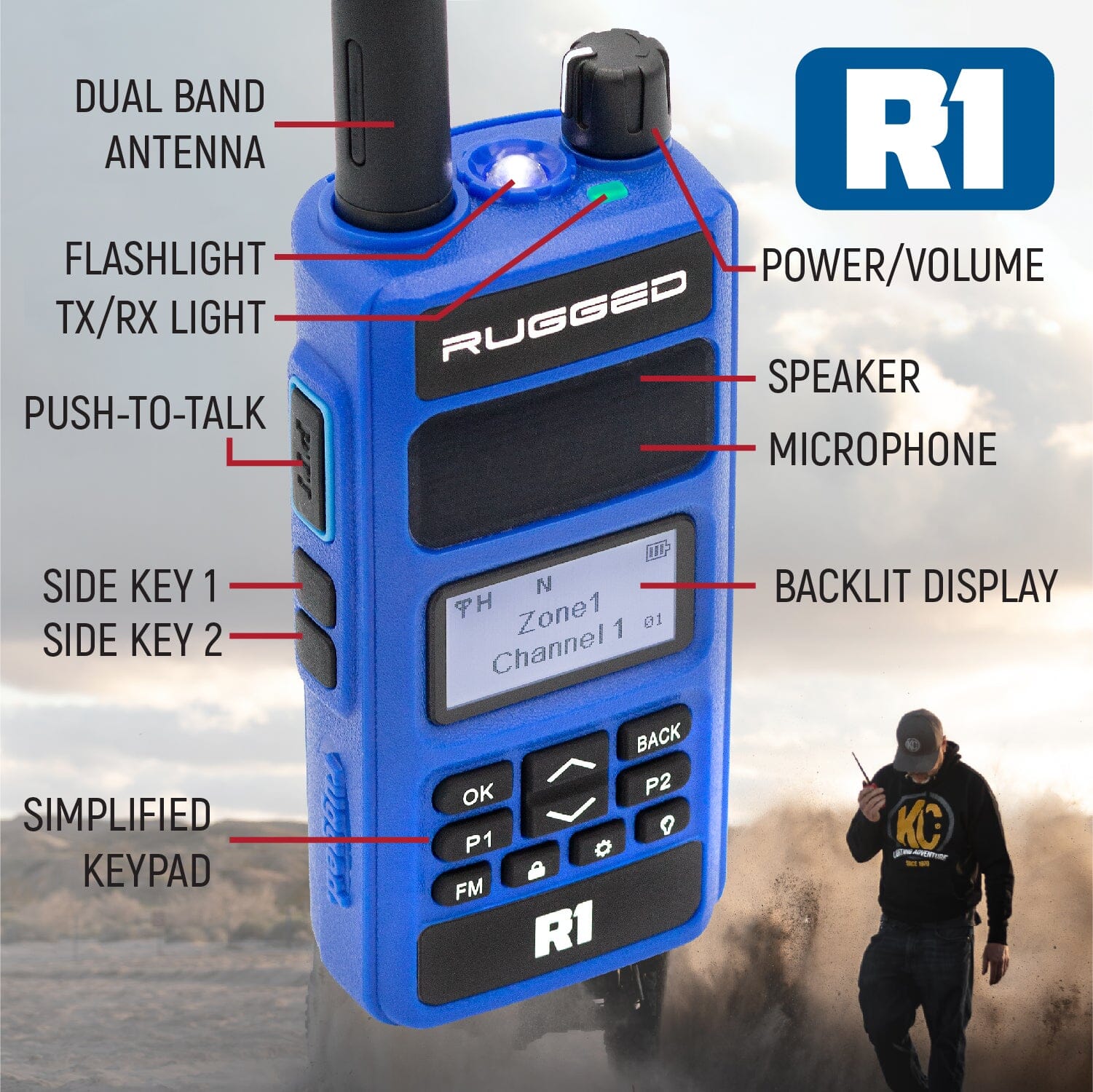

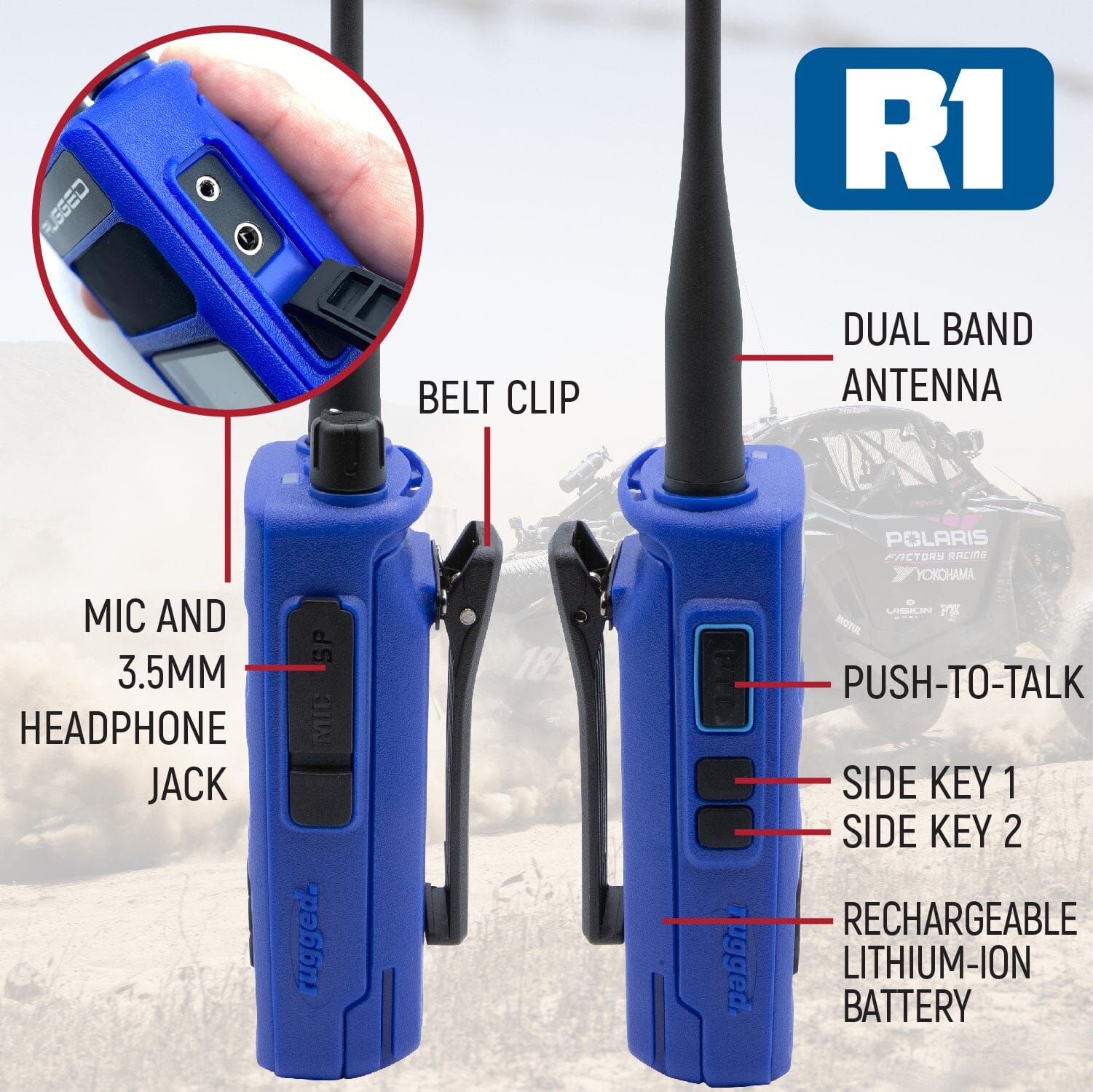

The R1 handheld radio is a lightweight, portable, digital/analog handheld radio. Featuring powerful industrial business band frequencies, the R1 is ready to get you talking.
Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.
User Manual: Click Here
Business License is required. Click here to learn more.
General
Frequency Range:
136-174MHz (VHF)
400-480MHz (UHF)
Channel Capacity: 1024
Frequency Stability: ± 1ppm
Operating Temperature: -20ºC ~ + 70ºC
Voltage: 7.4V DC
Weight: 242g (battery and antenna included)
Dimension (H x W x D): 120 x 60 x 35mm
Transmitter
Power (High): 5W
Power (Low): 1W
Transmit Current (Analog): ≤ 1.6A
Transmit Current (Digital): ≤ 0.9A
Standby Current: 0.15A
FM Modulation Mode:
11K0F3E @12.5KHz
14K0F3E @20KHz
16K0F3E @25KHz
4FSK Digital Mode:
12.5KHz Data Only: 7K60FXD
12.5KHz Data & Voice: 7K60FXW
Modulation Distortion: <5%
Hum & Noise:
≥ 45dB @25KHz
≥ 40 dB @12.5KHz
Adjacent Channel Power:
≤ -60dB @12.5KHz
Audio Response: +1 ~ -3dB
Antenna Port Spurious:
9KHz to 1GHz: ≤ -36dBm
1GHz to 12.75 GHz: ≤ -30dBm
Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3
Receiver
Analog Sensitivity: 0.2μV @12dB SINAD
Digital Sensitivity: 0.25μV (BER* 5%)
Intermodulation Rejection: 60-62dB
Sensitivity: 12dB @ -122dB
Adjacent Channel Selectivity: ≤ -60dB @12.5KHz
Co-channel Rejection: ≥ 65dB
Spurious Response: ≥ 70dB
Audio Response: +1 ~ -3dB
Rated Audio Distortion: <5%
Audio Power: 1W
Modulation Noise:
≥ 45dB @25KHz
≥ 40dB @12.5KHz
*BER = Bit Error Rate
