Radio Kit - Rugged M1 RACE SERIES Waterproof Mobile with Antenna - Digital and Analog

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(50)
RK-M1-V
$548.00

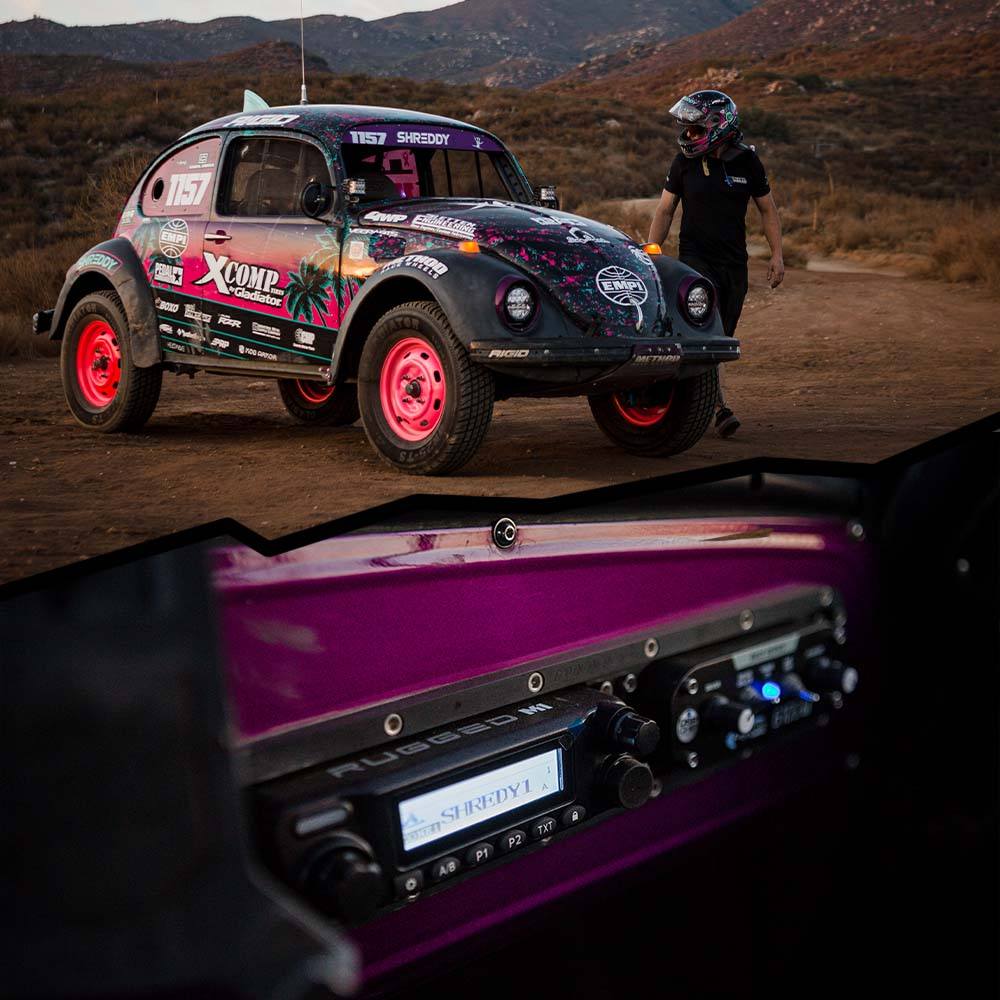

Not afraid of water, not afraid to race, not afraid to perform! The Rugged M1 Professional Mobile Radio is built to endure offroad racing's harshest environments.

Designed from the ground up, the M1 is IP67 waterproof, and it's all-aluminum chassis protects vital circuits from Radio Frequency Interference (RFI) improving performance and reducing noise. The large, clear, easy-to-read display provides quick access to programmable controls, and an intuitive user interface. The included Accessory Hub provides convenient remote access to the programming cable connection and a 3.5 mm external speaker output.

The Rugged M1 Professional Race Radio has everything you need in a powerful, streamlined package.

Easy upgrade: fits all existing RM60 mounts.

Features:
  • Waterproof, IP67 sealed housing
  • Superior digital audio clarity

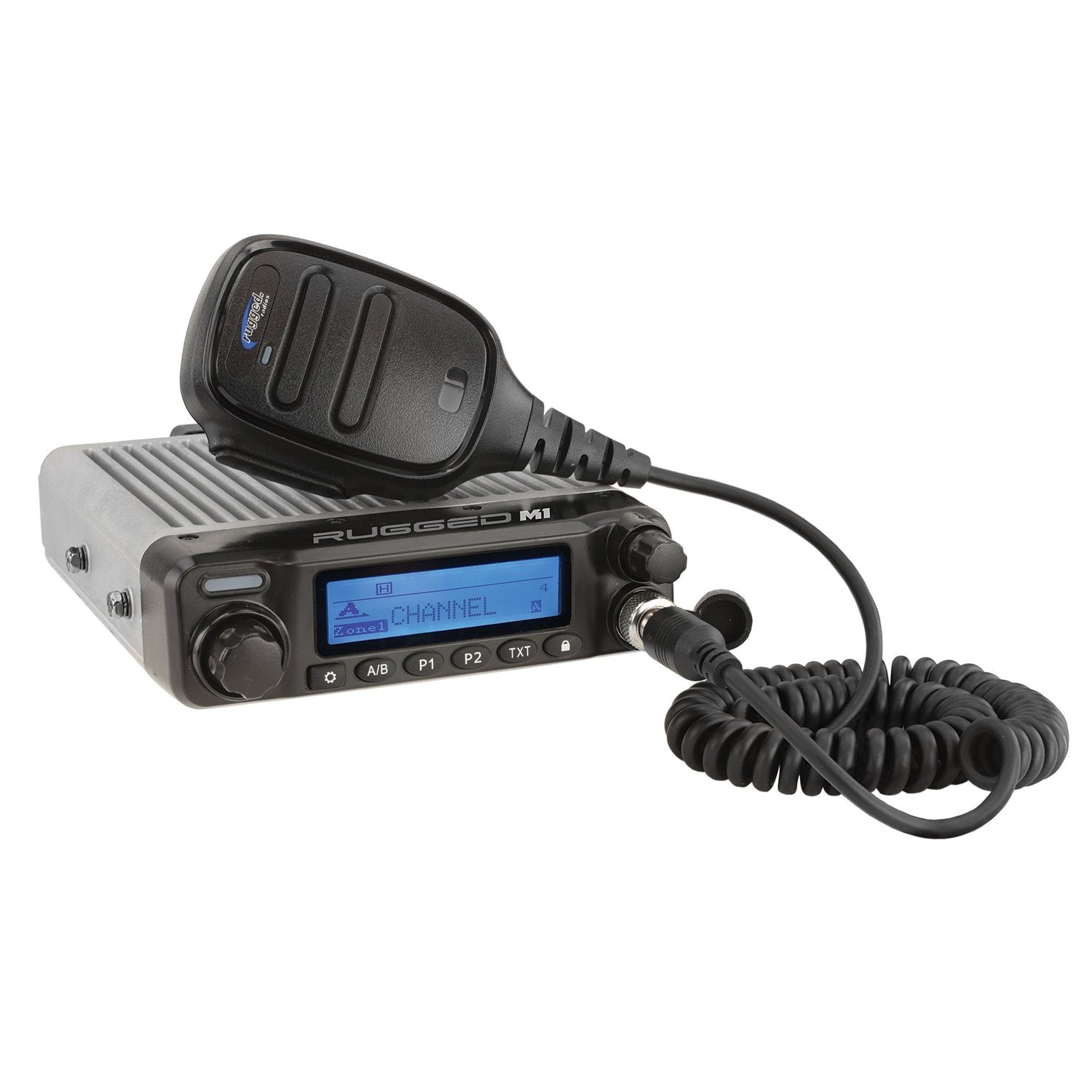

  • Ergonomic Hand Mic with Scosche® MagicMount Magnetic Mount
  • Digital / Analog VHF band mobile transceiver
  • Powerful Mitsubishi Transmit (TX) amplifier
  • Clear-Hear Superheterodyne receiver
  • Programmable, Quick-Access controls

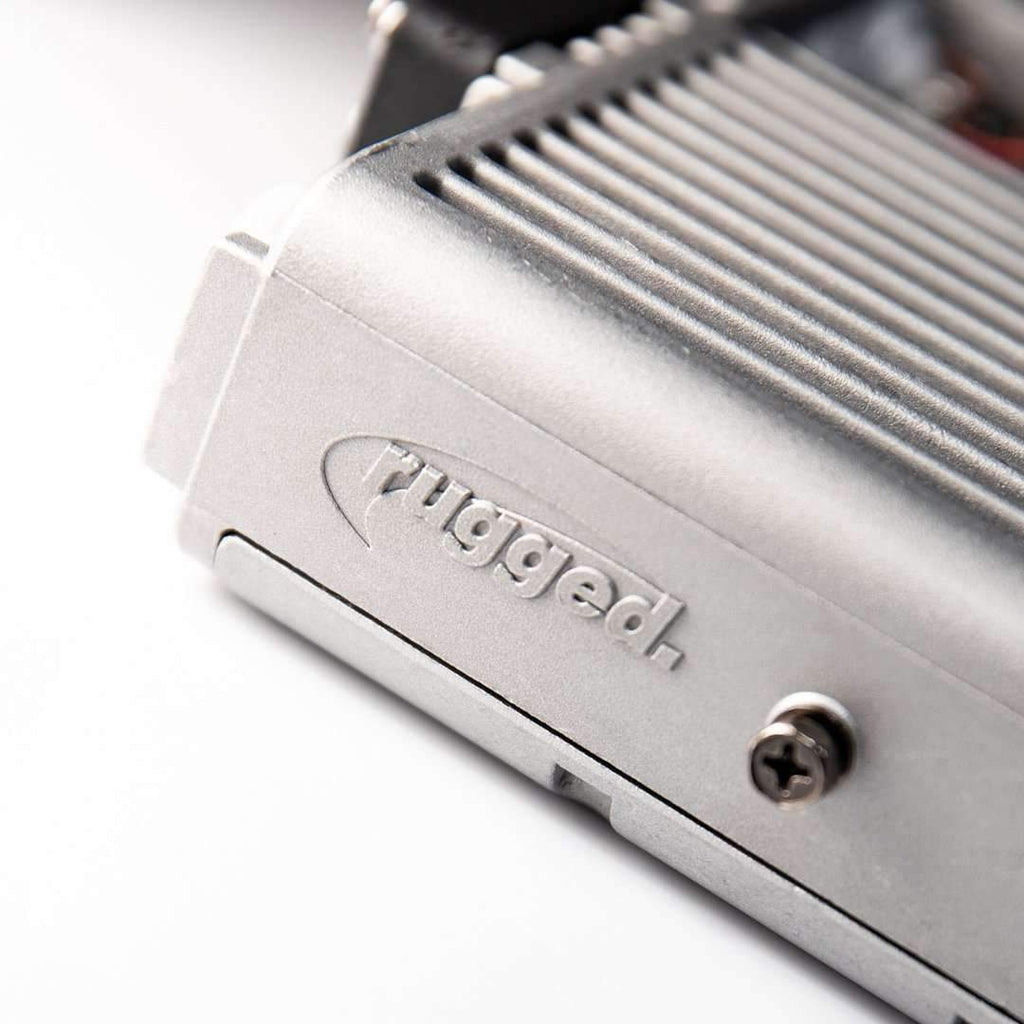

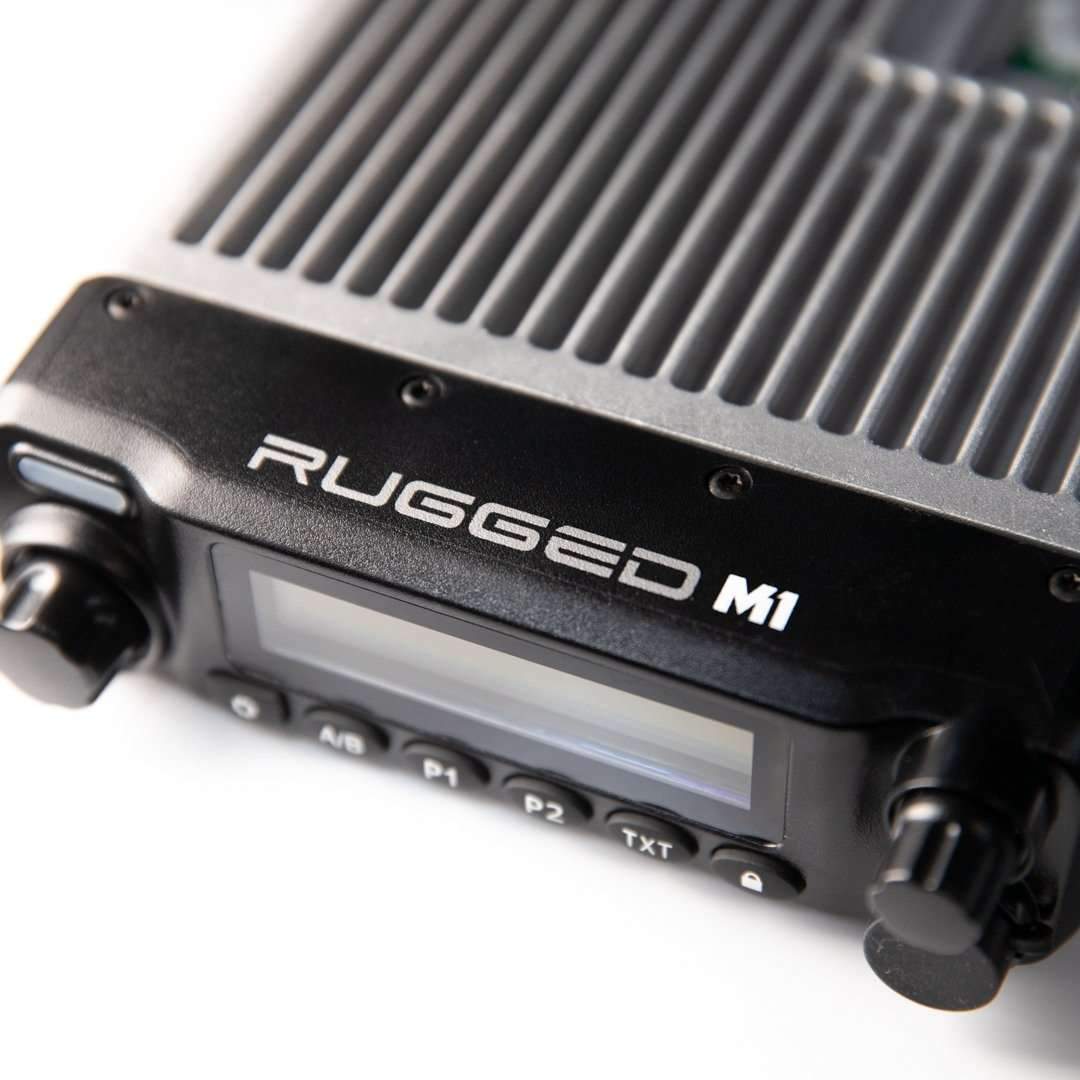

  • RFI reflective aluminum chassis

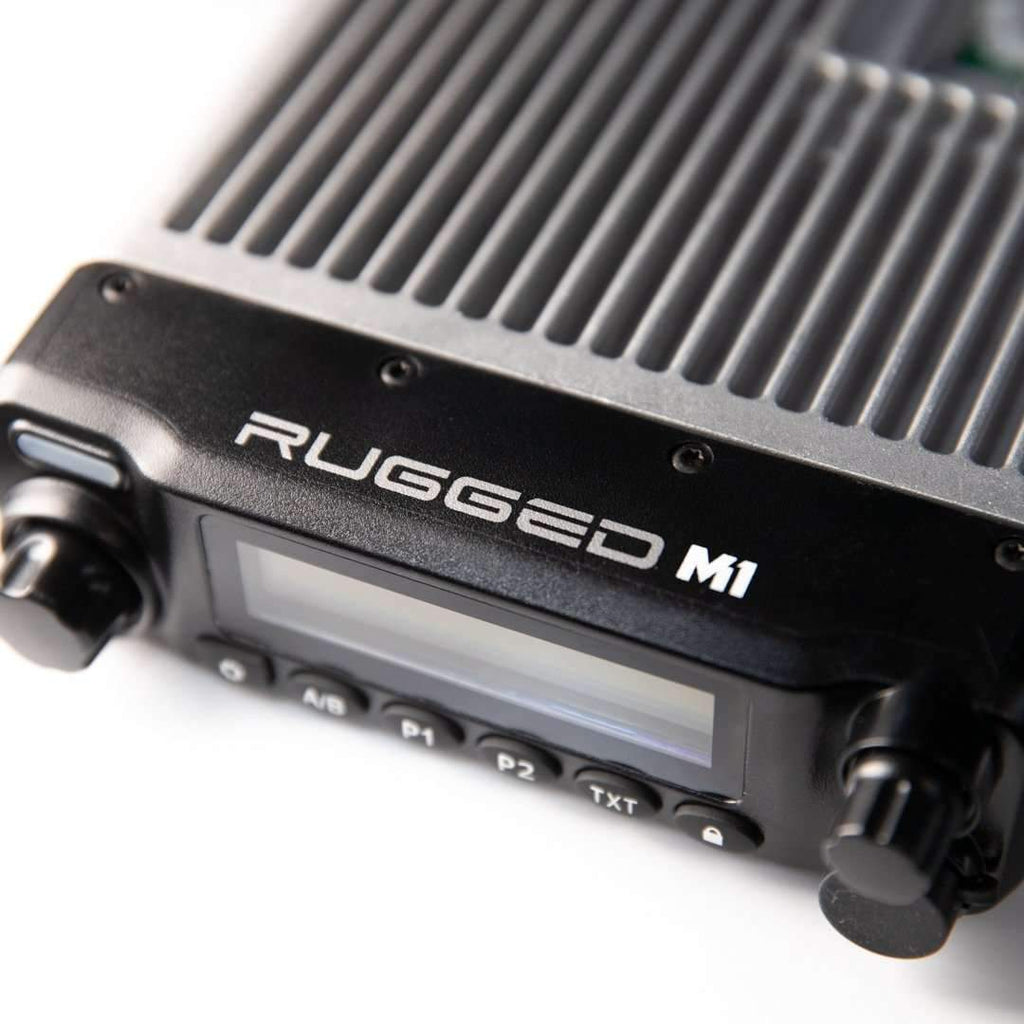

  • Large, Easy to read LED Display
  • Easy access remote Accessory Hub
  • Upgradeable firmware
  • 55 Watts

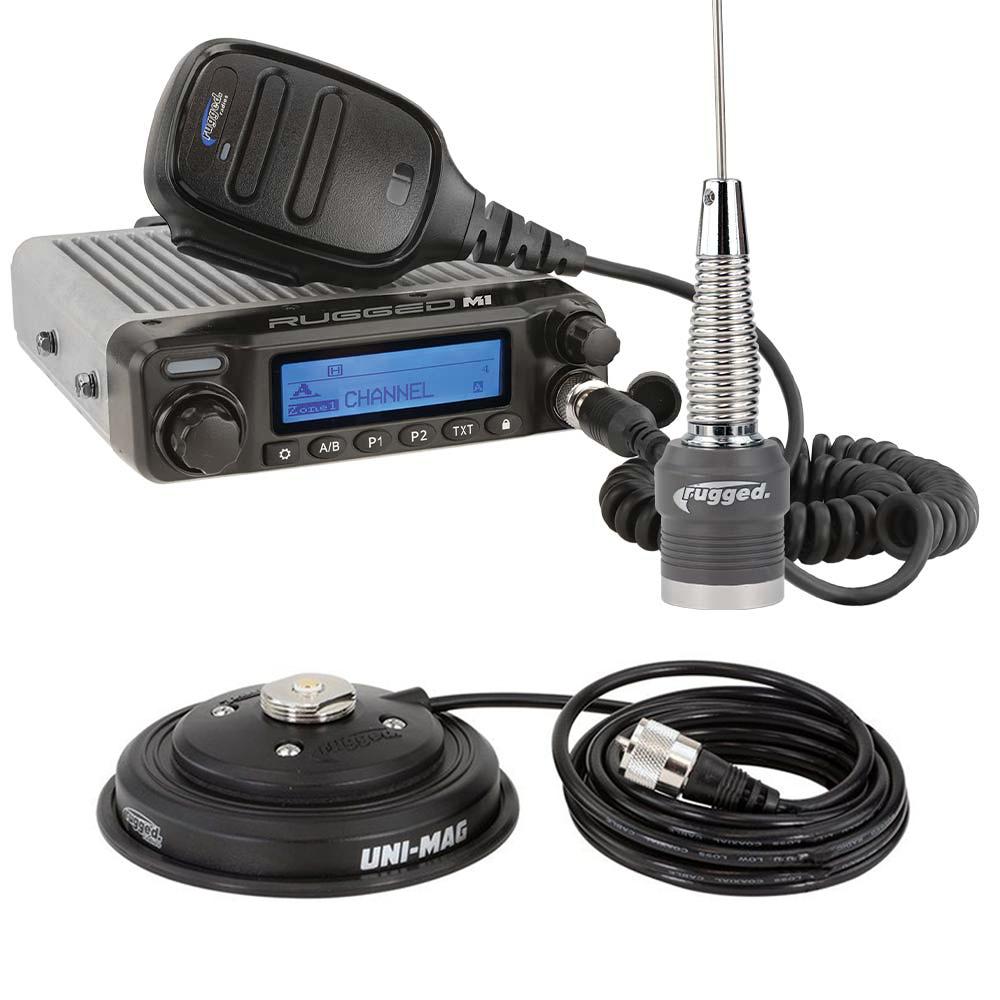

Radio Kit Includes:

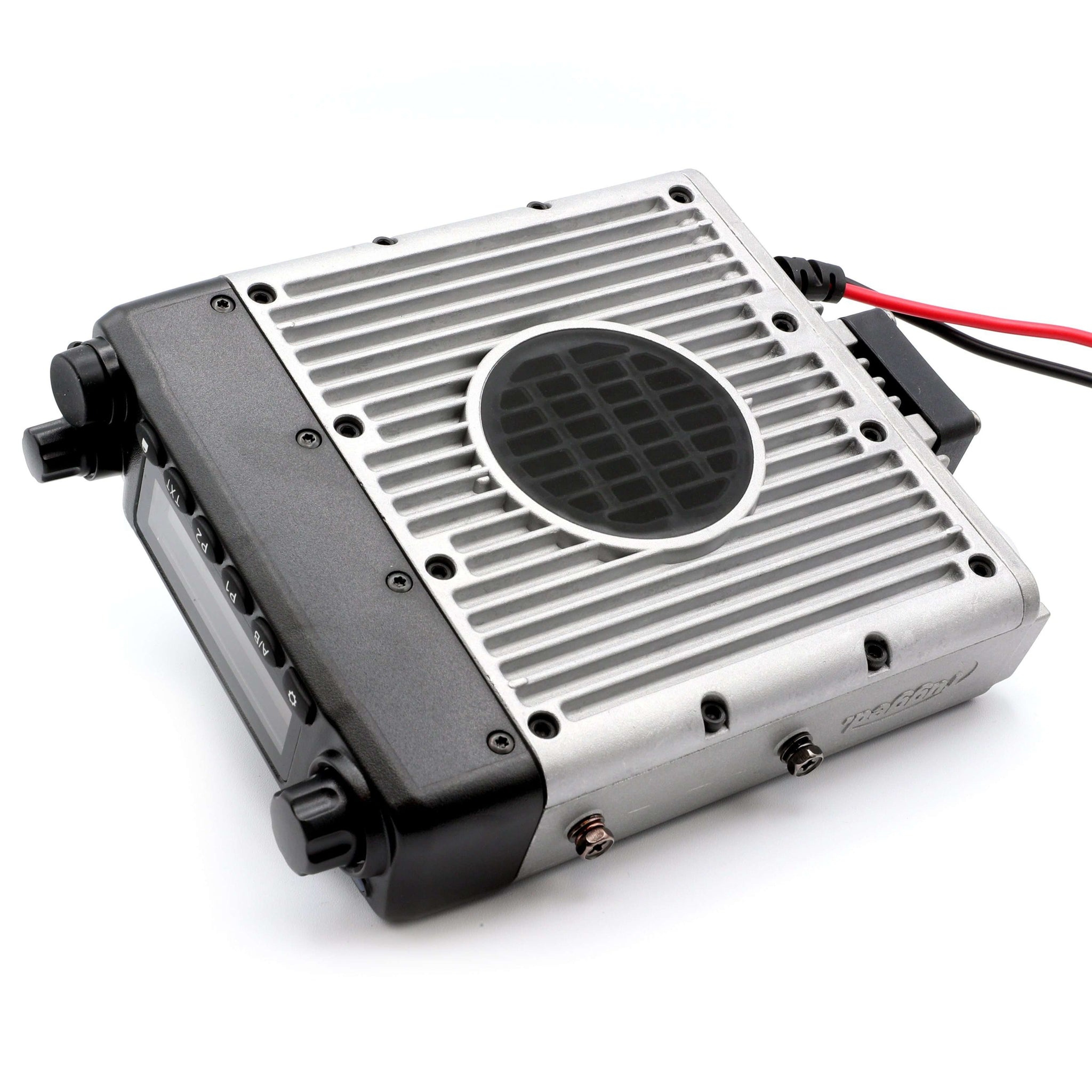

  • M1-V Radio

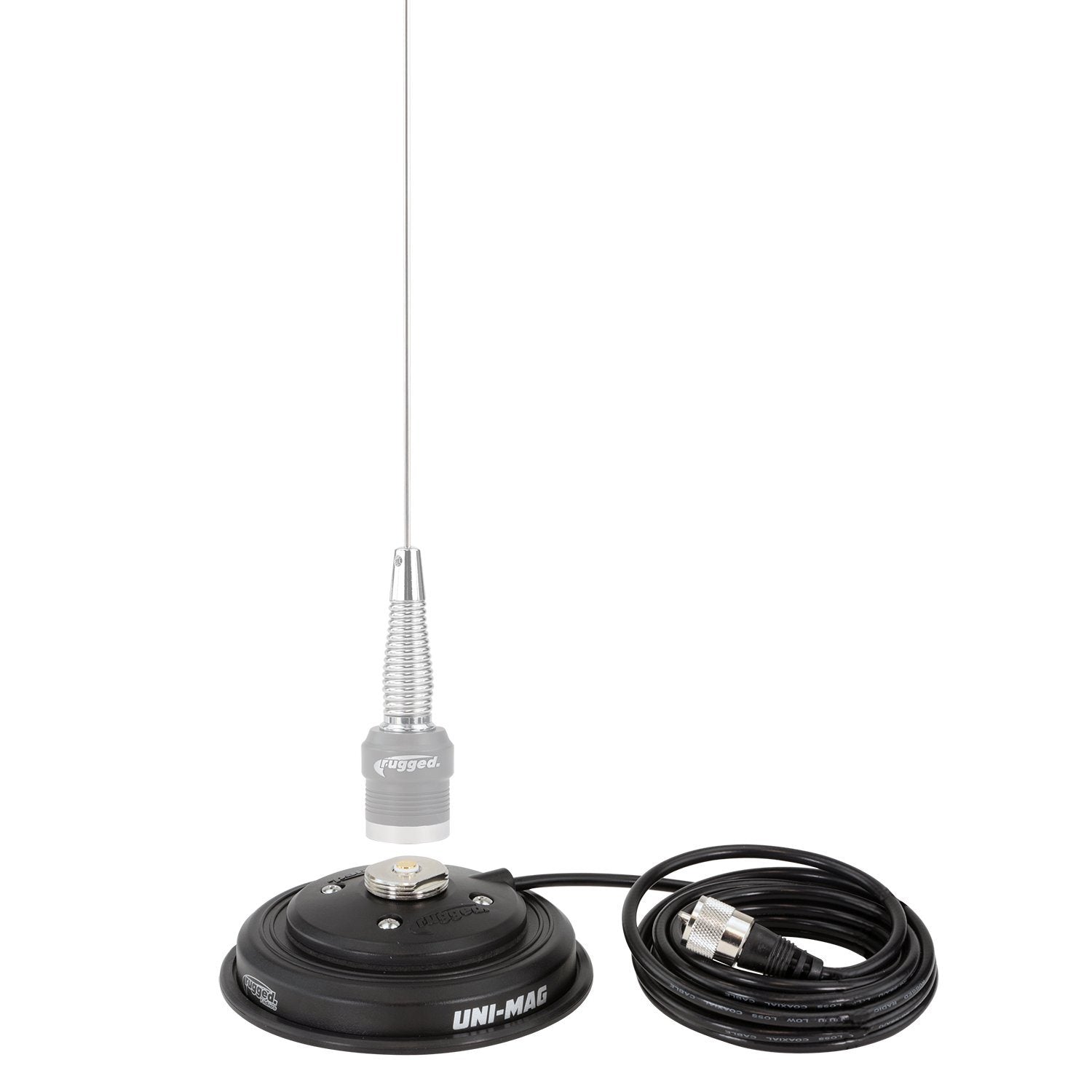

  • UNI-MAG Universal NMO or Magnetic Mount

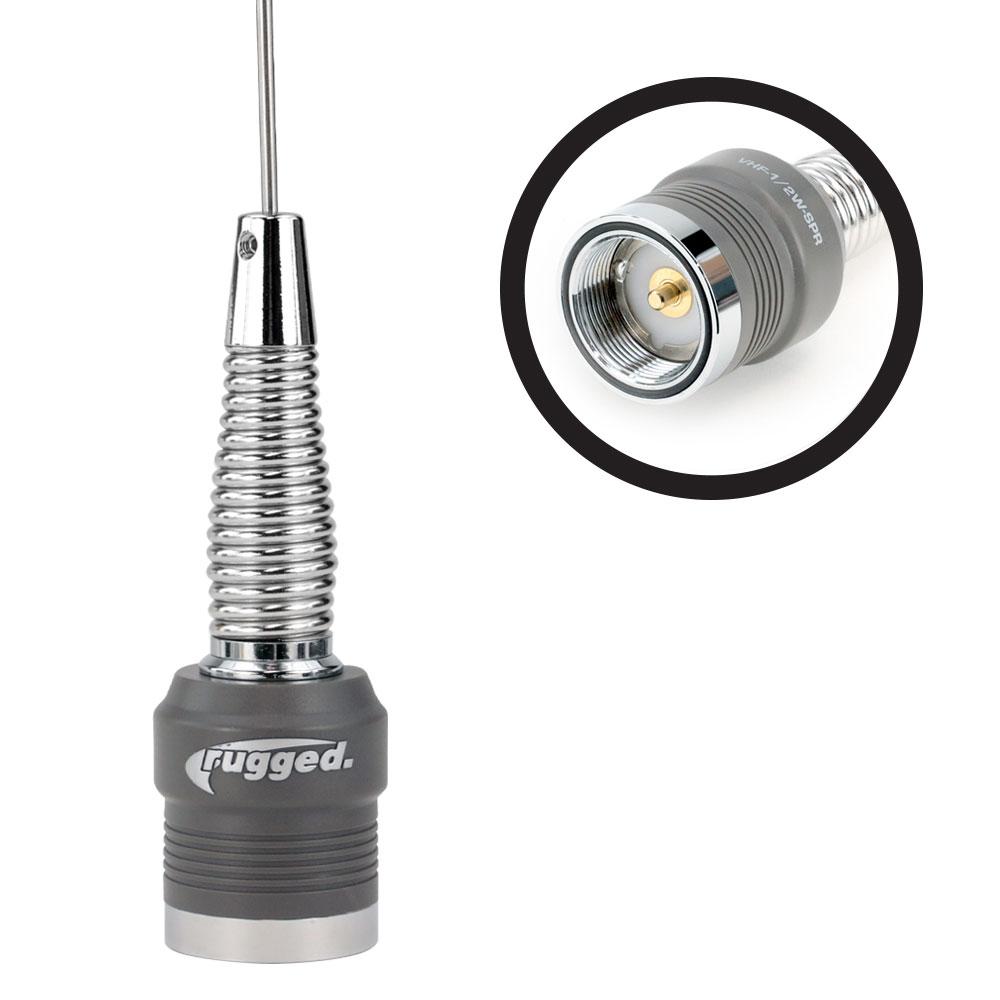

  • VHF 1/2W Spring Antenna

When the demand is on and weather gets tough the Rugged M1 is built to perform!



Dimensions:

185 mm x 141 mm x 40 mm

Compatibility:

This radio works with all VHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16-V, as well as Icom, Motorola, Kenwood business band radios, and more.



User Manual: Click Here
User Guide: Click Here



Read More
Read Less
  • M1 Mobile Radio

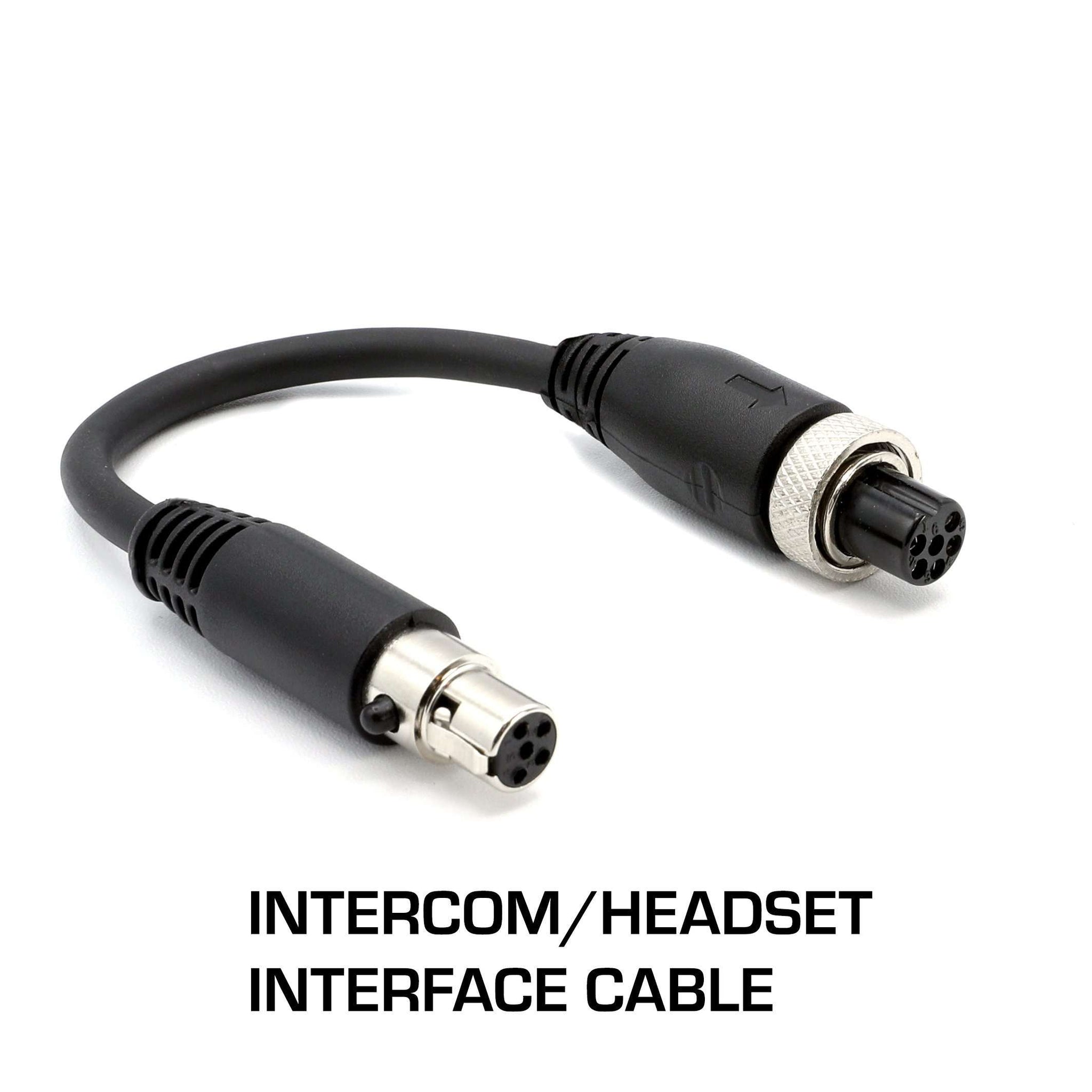

  • Rugged Ready accessory intercom/headset interface cable
  • Easy to Place 28" Accessory Hub cable for programming and external speakers
  • Easy Angle universal mounting bracket
  • Waterproof-connected power cable
  • Ergonomic Hand Mic with Scosche® MagicMount Magnetic Mount

General

Frequency Range: 136-174MHz (VHF)

Channel Capacity: 1000

PLL Channel Spacing: 6.25/25/12.5/25kHz

Voltage Rating: DC 13.8V

Operating Temperature: -20ºC ~ +70ºC

Storage Temperature: -30ºC ~ +80ºC

Dimensions: 143 x 40 x 175mm

Compatible with American Military Standard:

(MIL-STD-810C/D/E)



Transmitter

RF Power Output:

5W (Low)

25W (Medium)

55W (High)

FM Hum & Noise:

-40dB @12.5kHz

-45dB @25kHz

Modulation Limited:

±2.5kHz @12.5kHz

±5.0kHz @25kHz

Conducted/Radiated Emission:

-36dBm < 1GHz

-30dBm > 1GHz < 4GHz

Adjacent Channel Power:

-60dB @12.5kHz

-65dB @25kHz

Audio Response: +1dB ~ -3dB

Audio Distortion: 3%

FM Modulation:

12.5kHz: 11KOF3E

25kHz: 16KOF3E

4FSK Digital Modulation:

12.5kHz Only Data: 7K60FXD

12.5kHz Data & Audio: 7K60FXE

Digital Protocol: DMR / ETSI TS 102361-1, -2, -3

Digital Vocoder Type: AMBE++

Digital Protocol: DMR



Receiver

Frequency Stability (-20ºC +60ºC, +25ºC):

±1.0ppm

Digital Sensitivity:

0.3μV / -117.4dBm (BER* 5%)

0.7μV / -110dBm (BER* 1%)

Analog Sensitivity:

0.35μV / -116dBm (20dB SINAD)

0.22μV / -120dBm (20dB SINAD)

Rated Audio: 3W

Adjacent Channel Selectivity:

TIA630C:60dB @12.5kHz

ETSI: 60dB @12.5kHz

Intermodulation:

TIA603C:65dB

ETSI: 65dB

Co-Channel Rejection: 12dB @12.5kHz

Spurious Rejection:

TIA603C:70dB

ETSI:70dB

Audio Distortion @ Rated Audio: ≤ 3%

FM Hum & Noise:

-40dB @12.5kHz

-45dB @25kHz

Audio Response: +1dB ~ -3dB

Spurious Emission:

-57dBm < 1GHz

-47dBm > 1GHz

Block: 84dB



*BER = Bit Error Rate
