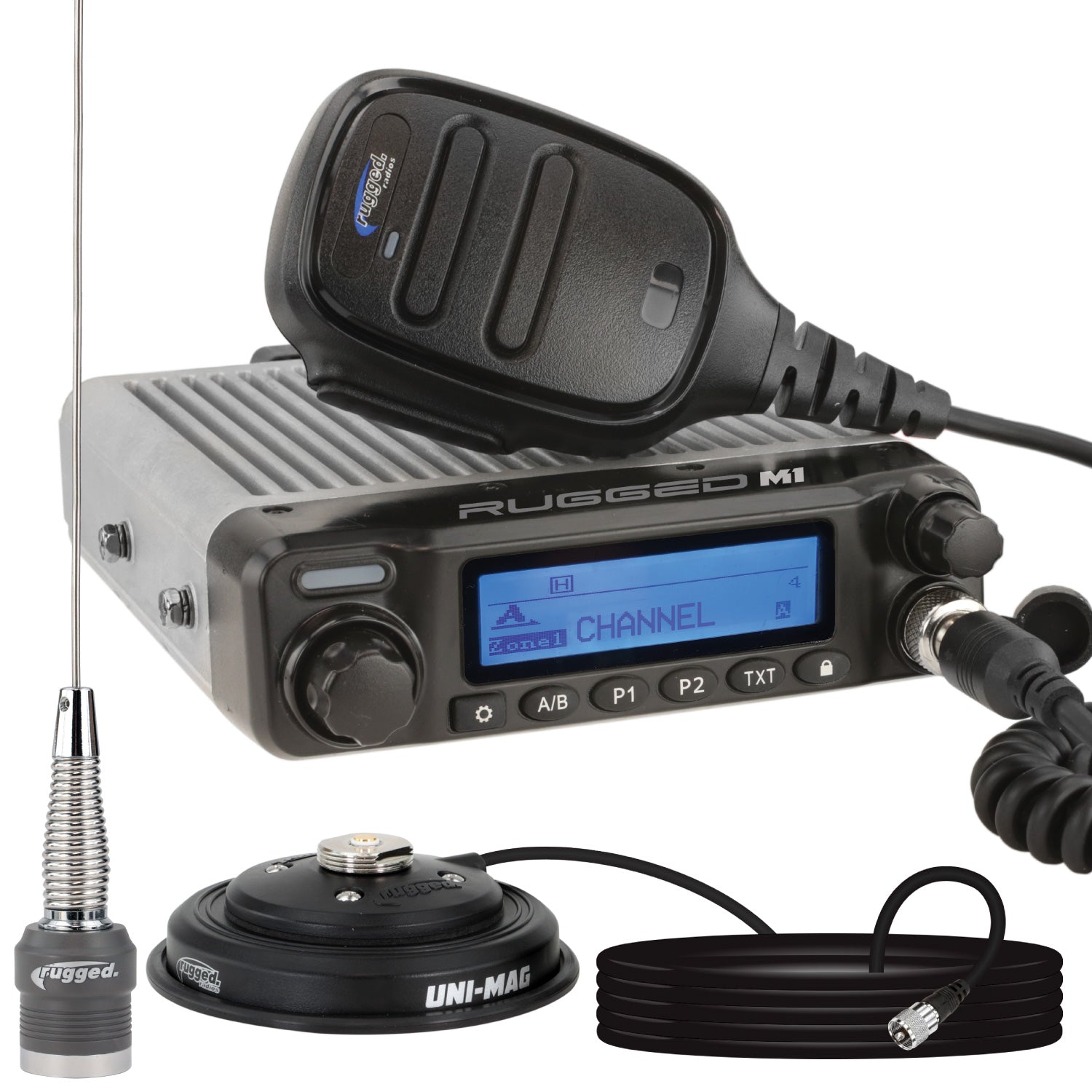

Radio Kit - Rugged M1 RACE SERIES Waterproof Mobile with Antenna - Digital and Analog

Not afraid of water, not afraid to race, not afraid to perform! The Rugged M1 Professional Mobile Radio is built to endure offroad racing's harshest environments.

Designed from the ground up, the M1 is IP67 waterproof, and it's all-aluminum chassis protects vital circuits from Radio Frequency Interference (RFI) improving performance and reducing noise. The large, clear, easy-to-read display provides quick access to programmable controls, and an intuitive user interface. The included Accessory Hub provides convenient remote access to the programming cable connection and a 3.5 mm external speaker output.

The Rugged M1 Professional Race Radio has everything you need in a powerful, streamlined package.  When the demand is on and weather gets tough the Rugged M1 is built to perform!

Easy upgrade: fits all existing RM60 mounts.

Features:

• Power: 55 Watts
• Waterproof: IP67 sealed housing
• Audio: Superior digital audio clarity
• Ergonomic: Hand Mic with Scosche® MagicMount Magnetic Mount
• Transceiver: Digital / Analog VHF band

• Amplifier: Powerful Mitsubishi Transmit (TX) amplifier
• Receiver: Clear-Hear Superheterodyne receiver
• Controls: Programmable, Quick-Access controls
• Chassis: RFI reflective aluminum chassis
• Display: Large, easy to read LED display
• Accessory Hub: Easy access cable for speaker and programming
• Rugged Ready: Port allows connectivity to Rugged intercoms and accessories
• Firmware: Upgradeable
• Antenna: No Ground Plane (NGP) VHF
• Radio Dimensions: 7.3" x 5.5" x 1.6"

Includes:

• (1) Radio: 55-Watt VHF M1V radio

• (1) Radio Mount: Universal U-Bracket

• (1) Hand Mic: With Scosche Magentic MagicMount

• (1) Accessory Hub: Speaker and programming cable
• (1) Power: DC power cable with fuse holder

• (1) Hardware Pack
• (1) Protection Fuse
• (1) UNI MAG: Converts from magnetic to standard NMO mounting
• (1) Antenna: VHF 1/2W spring antenna

NOTE: The center conductor inside the NMO antenna stud is not solid metal and can be damaged if overtightened. As shown in the photo above, when installing the NMO nut, we recommend holding the wrench vertically to reduce torque and overtightening.

Compatibility:

This radio works with all VHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16-V, as well as Icom, Motorola, Kenwood business band radios, and more.

M1 User Manual: Click Here
M1 User Guide: Click Here
