R1 Bundle with Long Range Antenna and High Capacity Battery
Go Further with the R1 Bundle; featuring the R1 Handheld, Long Range Antenna, and High Capacity Battery! From the races to the job-site, the all-new Rugged R1 has the features to get the job done. Feature-packed, with an easy-to-use interface - The R1 is the workhorse that does it all.
- Includes radio, long range antenna, & high capacity battery!

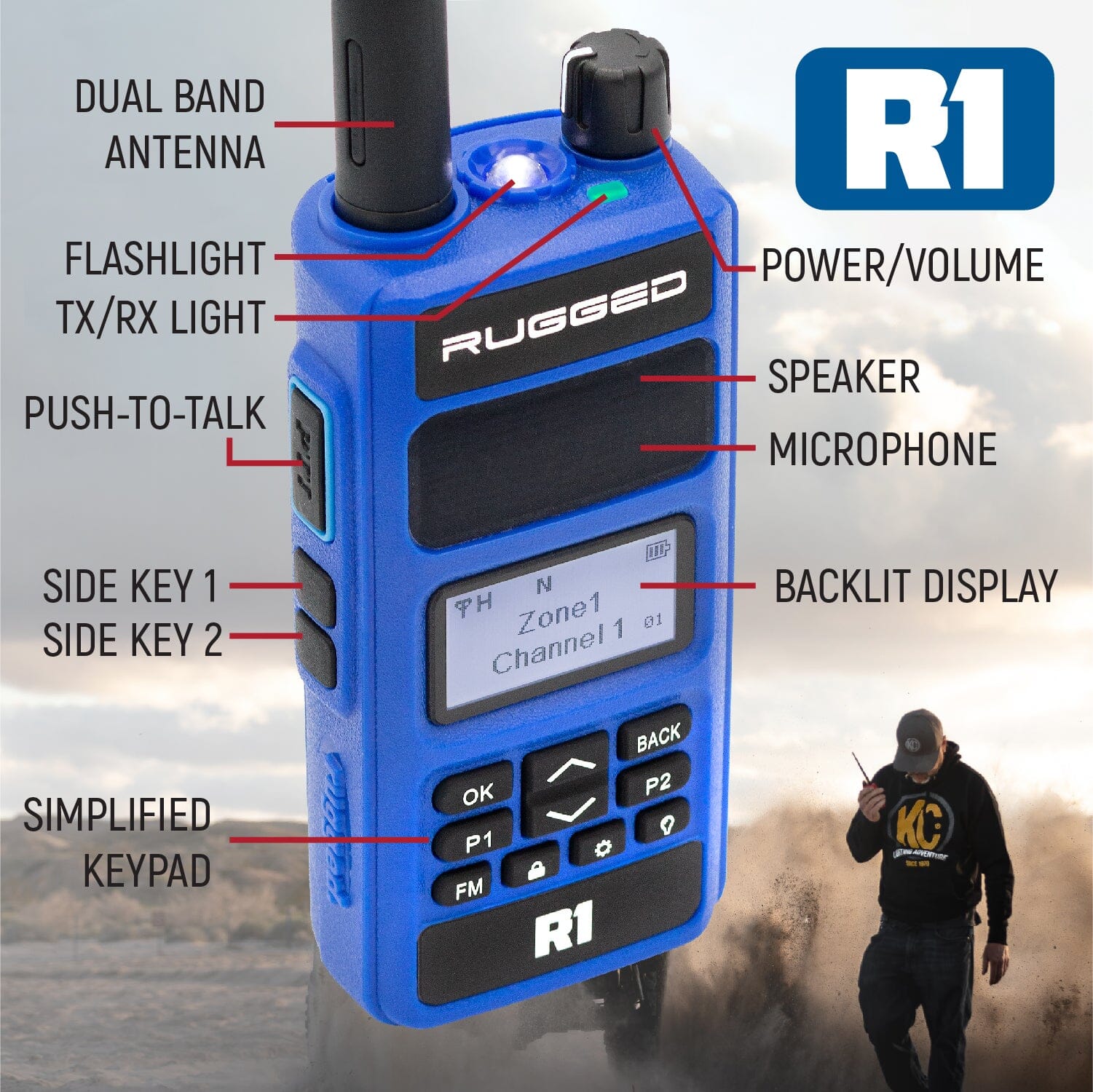

- Easy-to-Use Keypad and Interface
- Customizable Channel Preset Buttons
- Works with most business radios - including V3*
Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.
Go Further with the R1 Bundle; featuring the R1 Handheld, Long Range Antenna, and High Capacity Battery! Increase team efficiency with the perfectly-sized Rugged R1. Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.
This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!
Always go back to your home channels with customizable channel presets. Never lose power with the included charge-on-the-go USB cable, and light the way with the R1's built-in safety flashlight. Click here to view the user guide.
- *Works with all business analog radios and DMR Digital
- Versatile Dual Band VHF/UHF
- Crystal-clear digital DMR
- Large easy-to-read LED Display

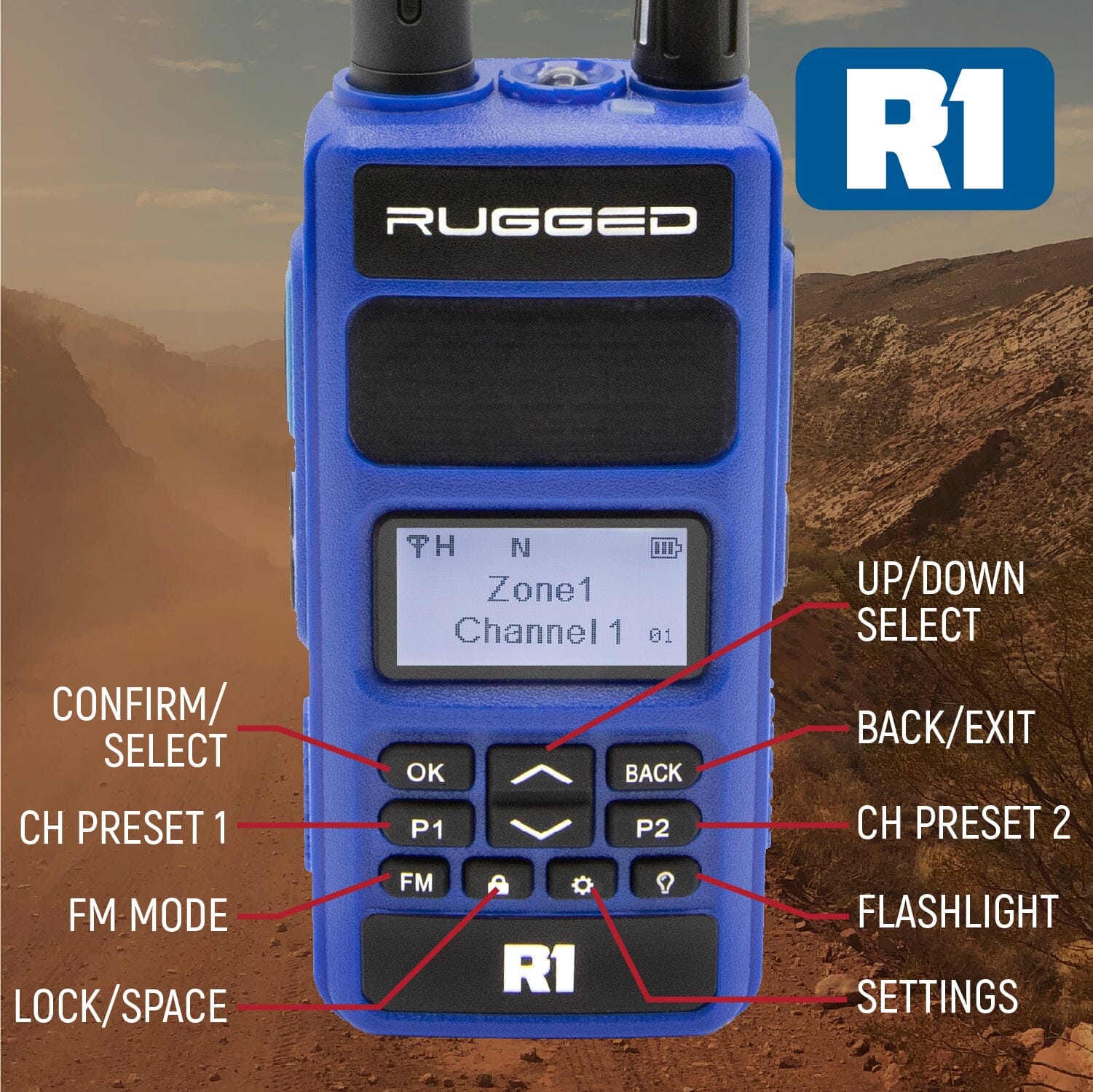

- Easy-to-use, Intuitive Keypad and Interface
- Text Messaging on digital channels
- Dual monitor (listen to two channels at once)

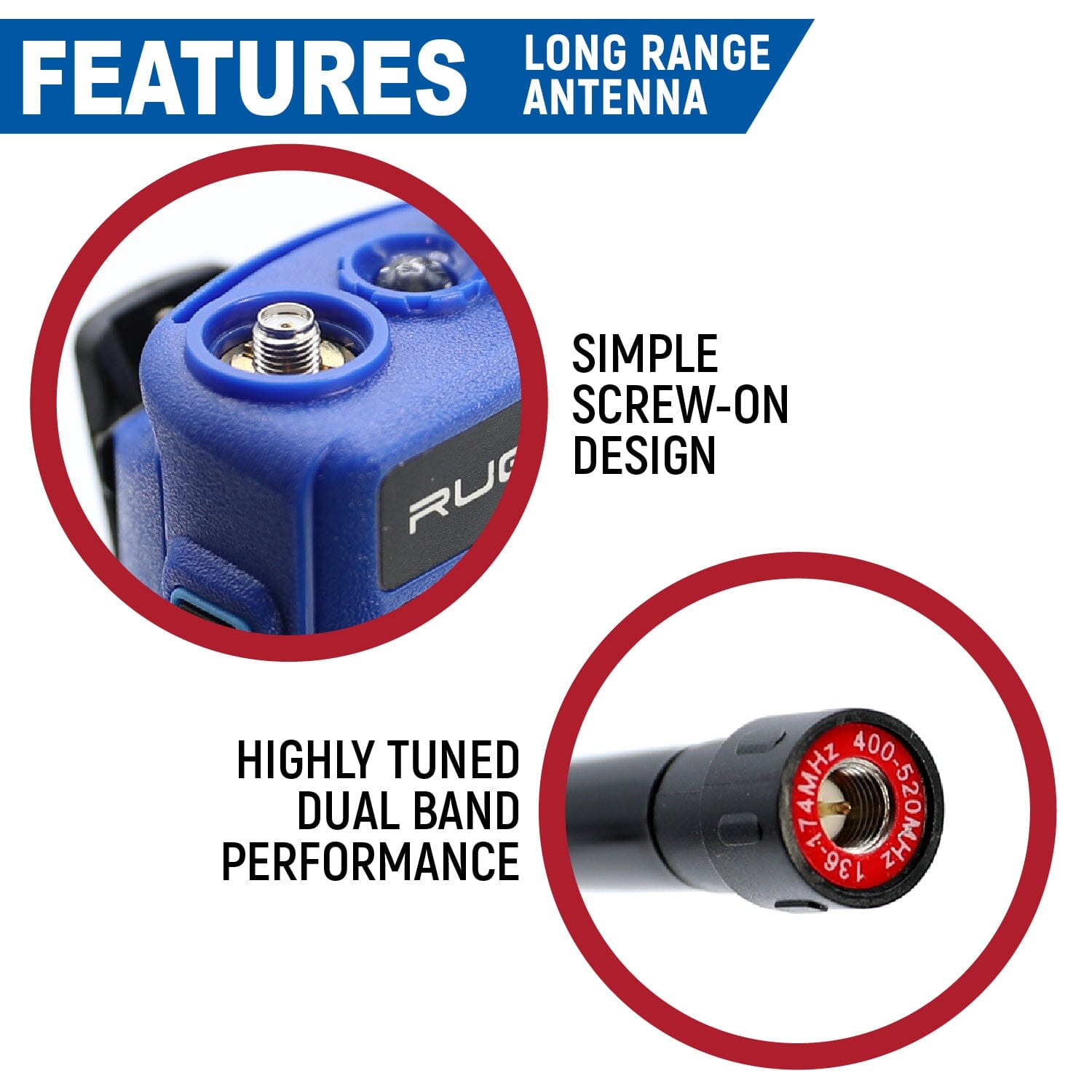

- Performance-tuned antenna

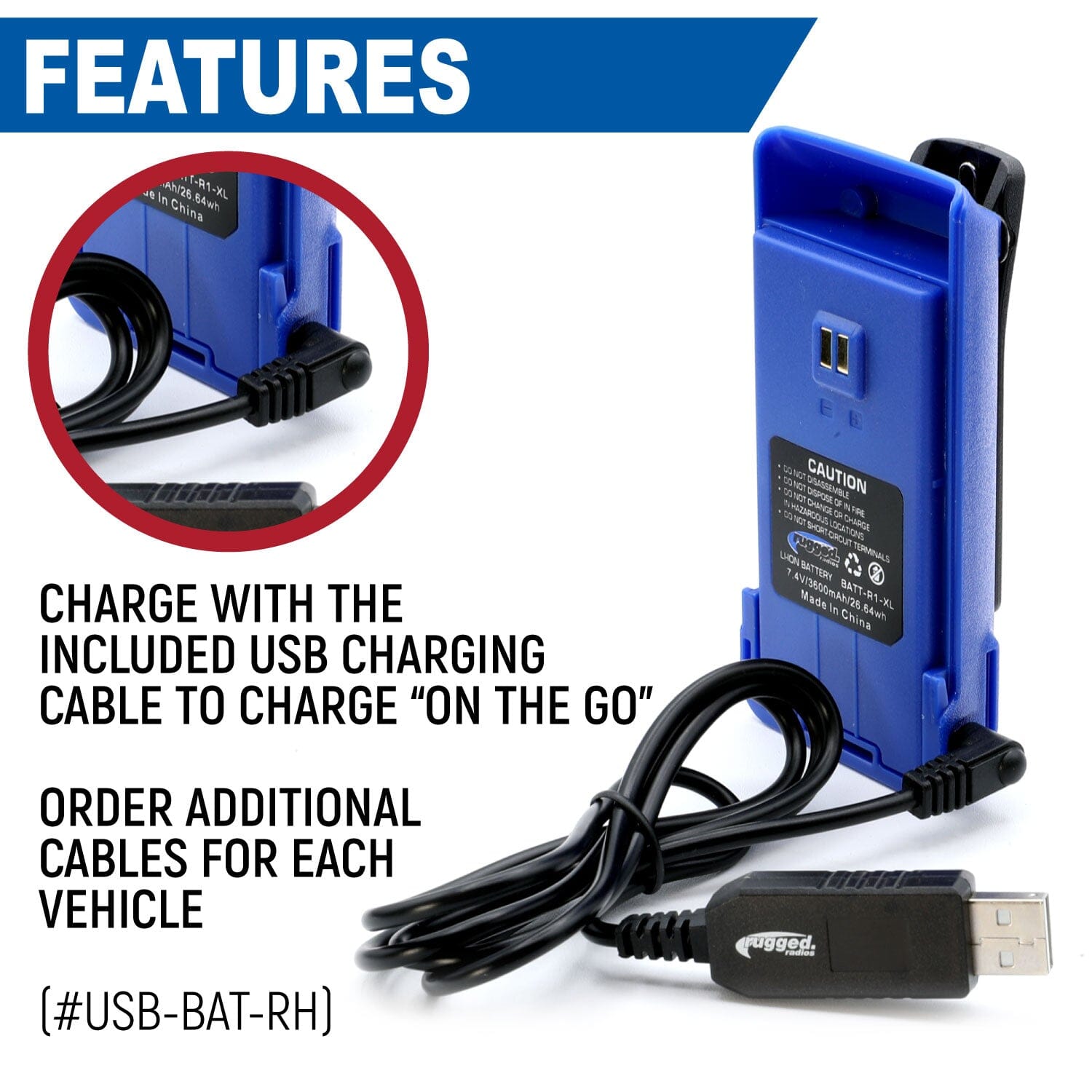

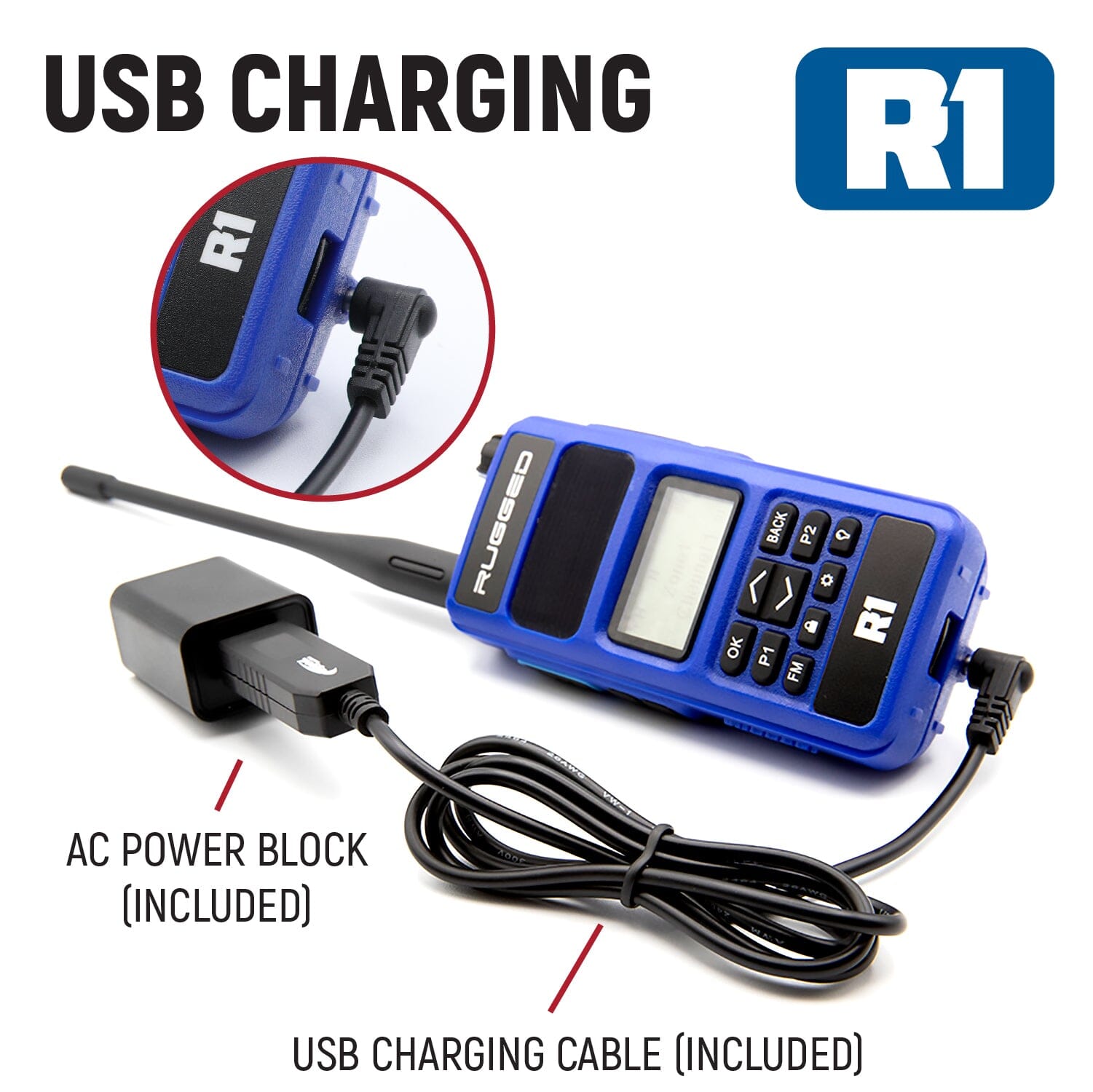

- Charge-on-the-go USB cable included
- Rechargeable Li-ion battery
- Powerful 5-Watt transmitter

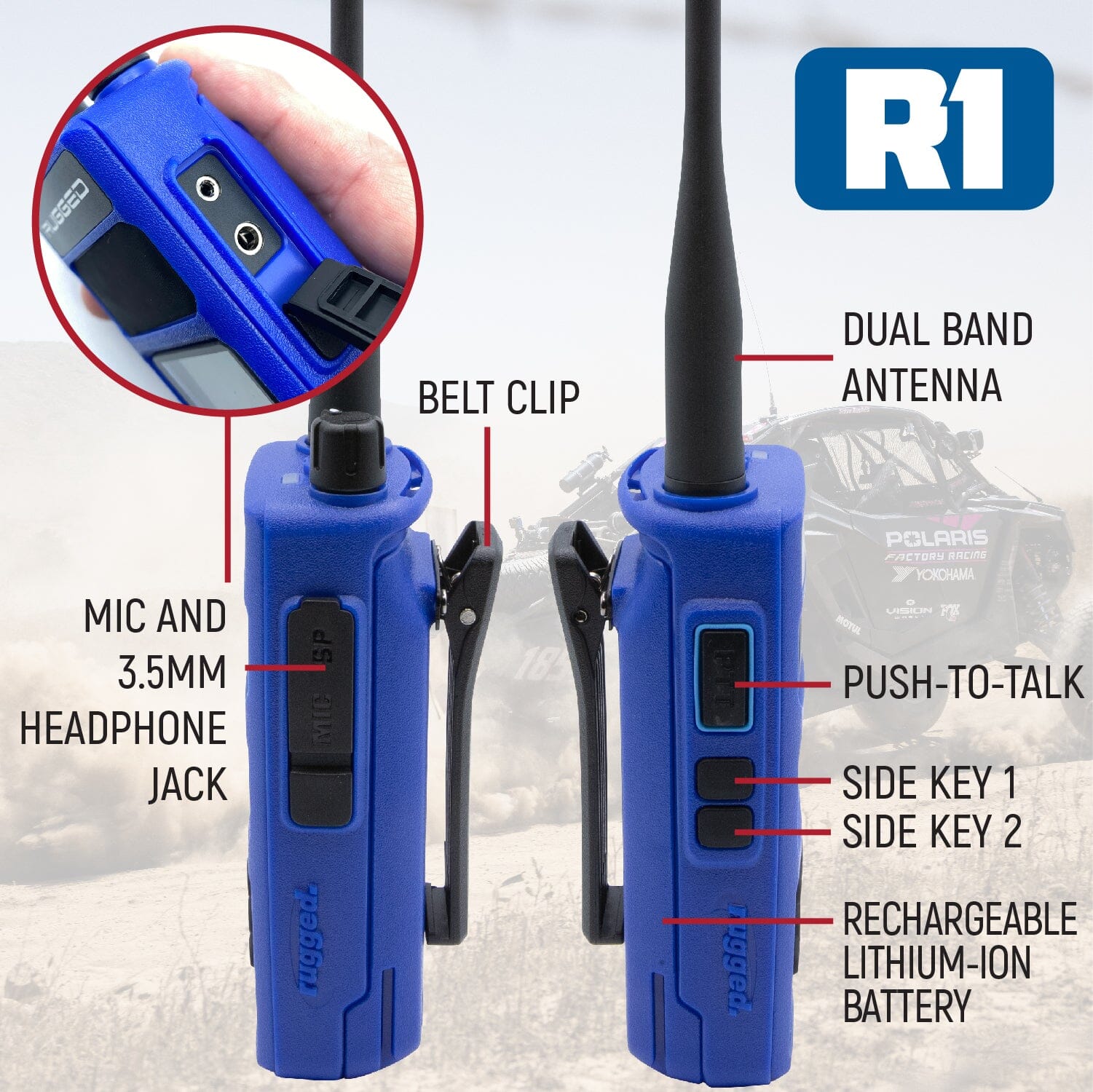

- Works with 2-Pin accessories

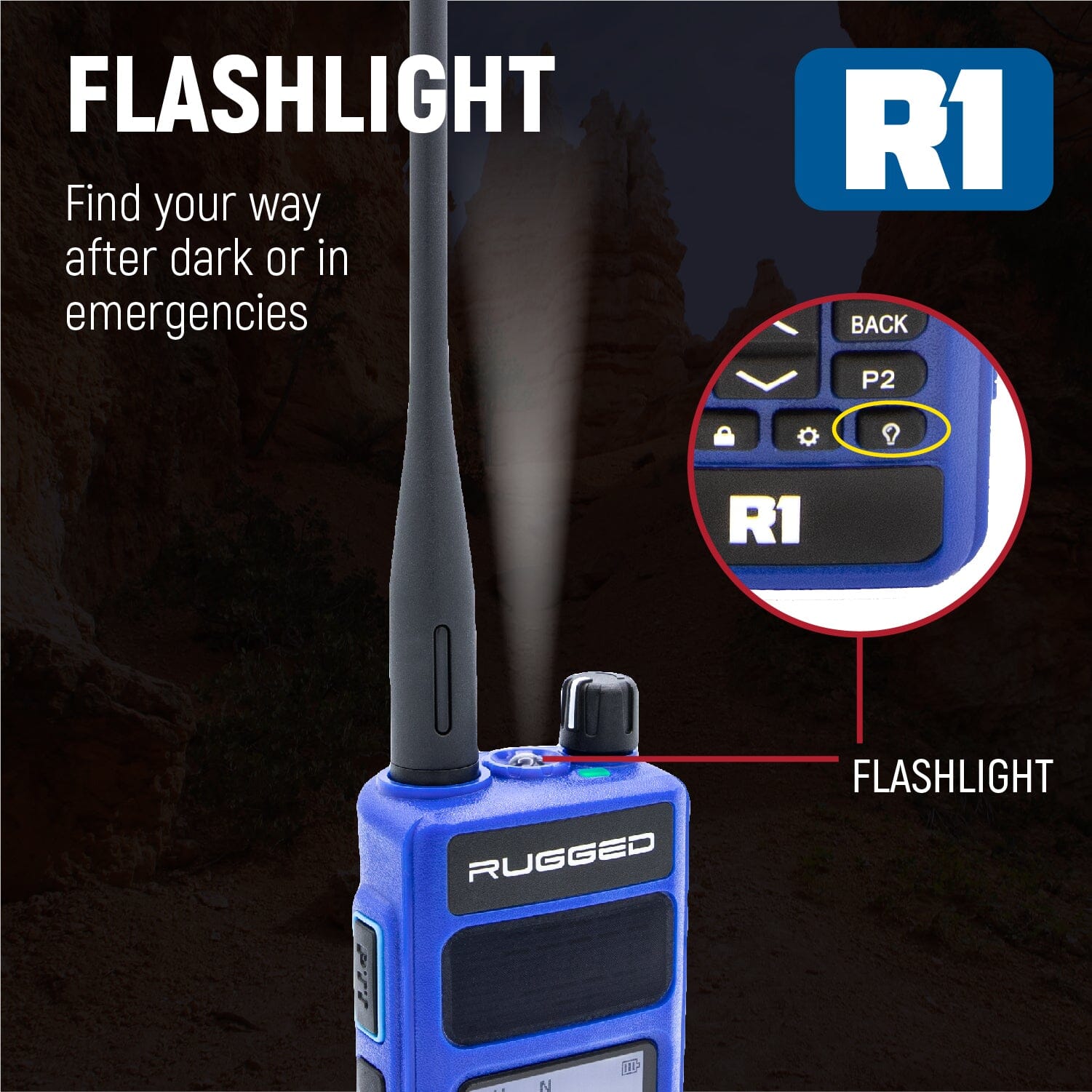

- Built-in safety flashlight
- 1 Touch FM Radio
- Lockable controls
- 1,024 Channel & 250 Zone capacity

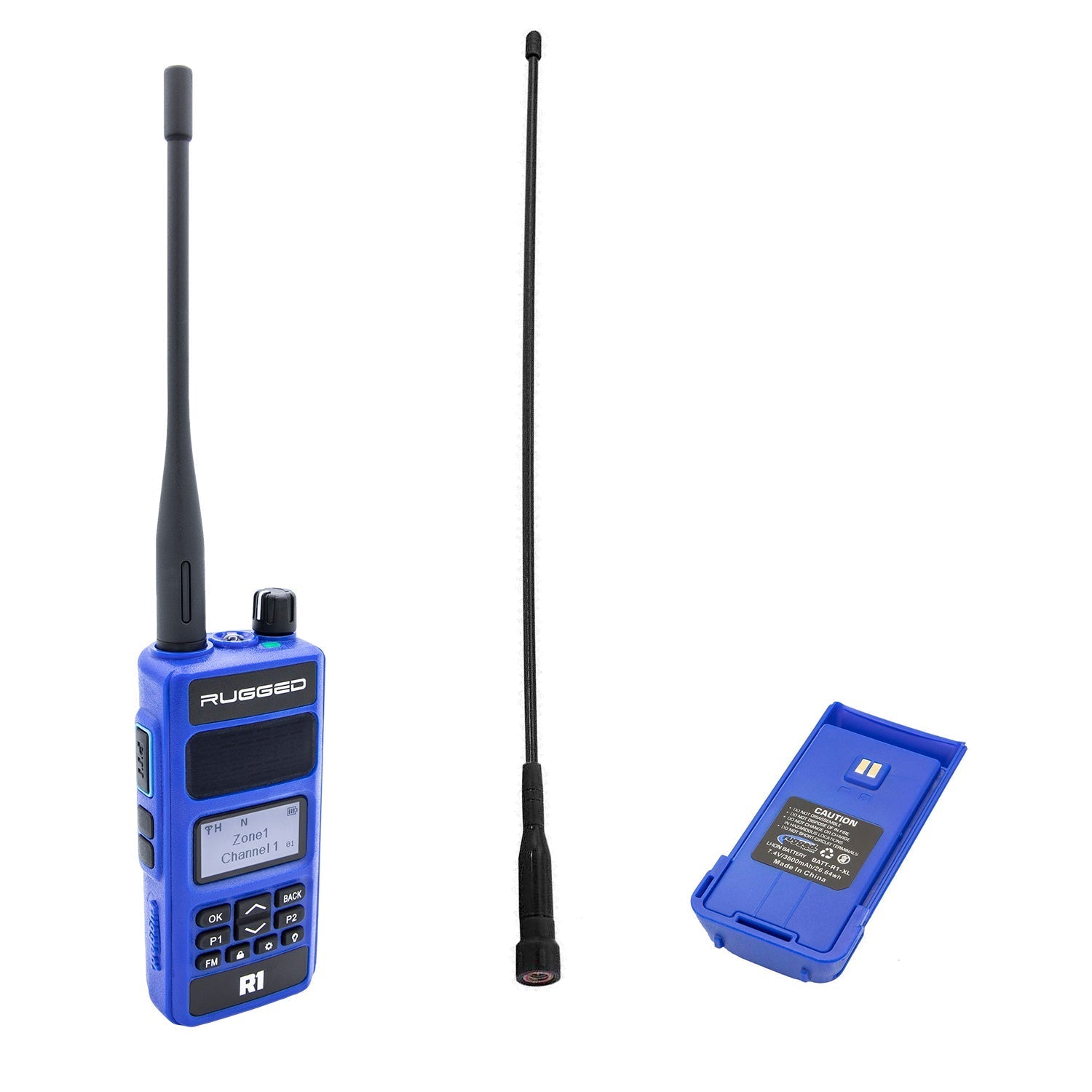

- R1 handheld radio

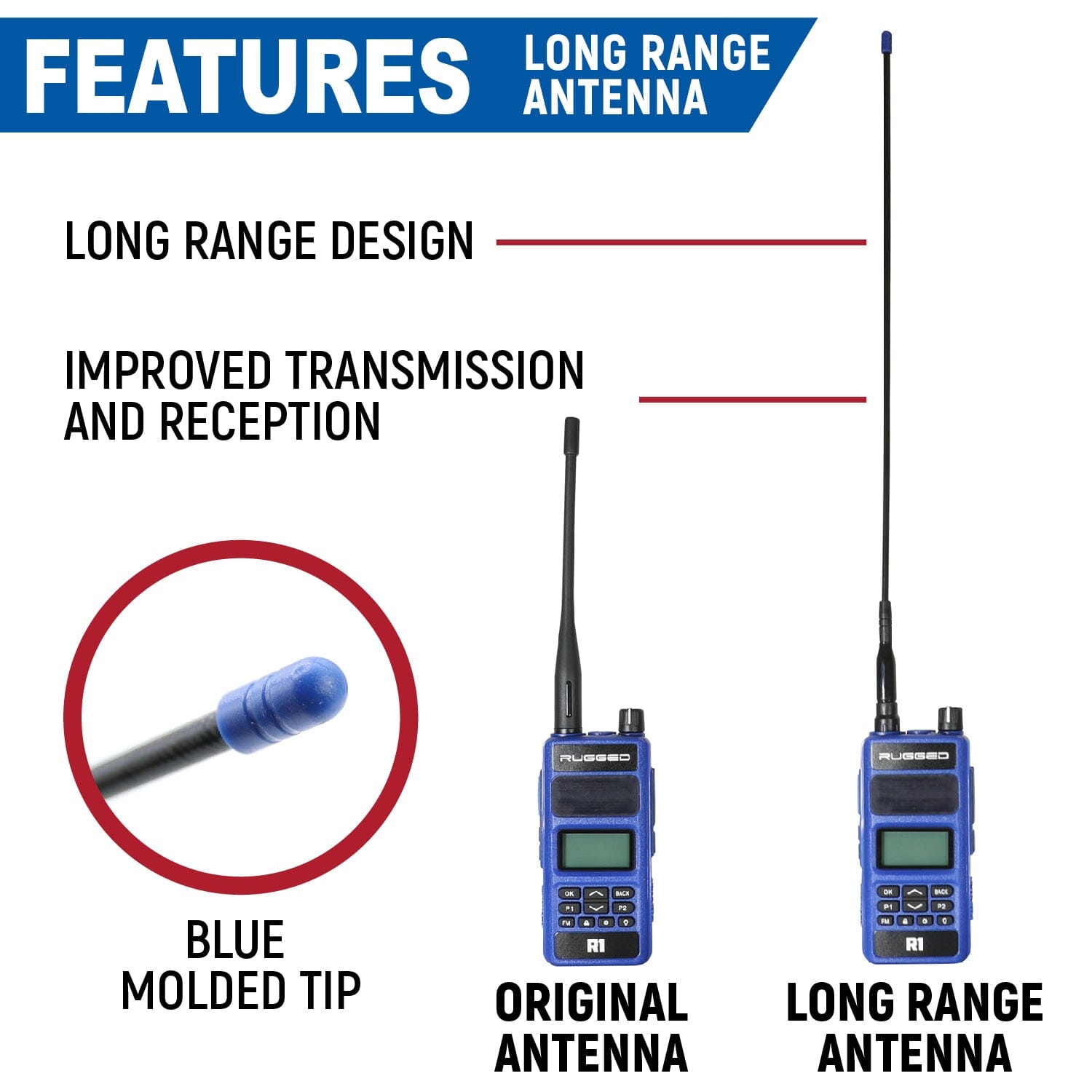

- Long range antenna

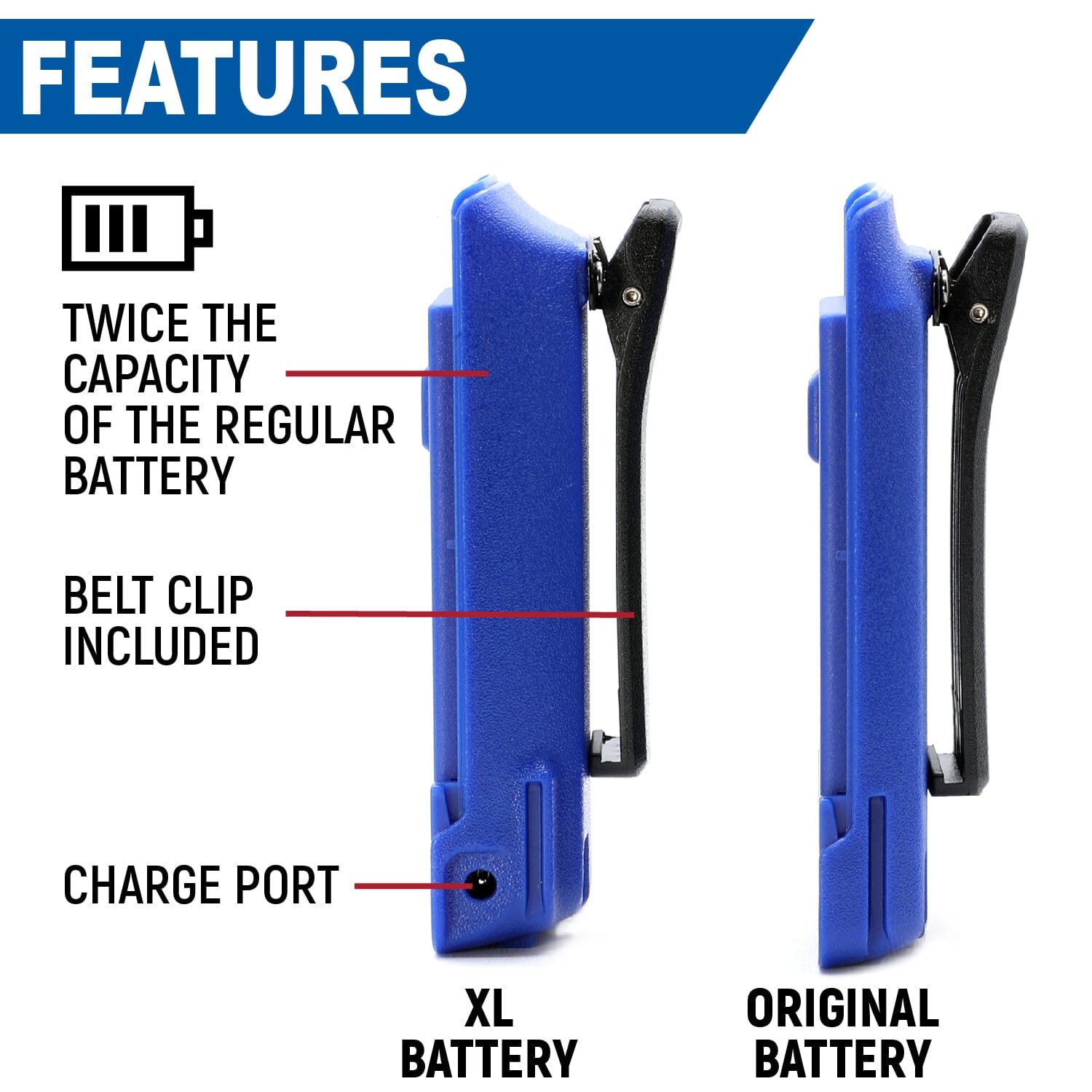

- High capacity battery
- USB charging cable / power adapter
- Belt clip
The R1 handheld radio is a lightweight, portable, digital/analog handheld radio. Featuring powerful industrial business band frequencies, the R1 is ready to help you Go Further!
Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.
Business License is required. Click here to learn more.
Channel Capacity: 1024
Frequency Stability: ± 1ppm
Operating Temperature: -20ºC ~ + 70ºC
Voltage: 7.4V DC
Weight: 242g (battery and antenna included)
Dimension (H x W x D): 120 x 60 x 35mm
Power (High): 5W
Power (Low): 1W
Transmit Current (Analog): ≤ 1.6A
Transmit Current (Digital): ≤ 0.9A
Standby Current: 0.15A
FM Modulation Mode:
4FSK Digital Mode:
12.5KHz Data Only: 7K60FXD
12.5KHz Data & Voice: 7K60FXW
Modulation Distortion: <5%
Hum & Noise:
≥ 45dB @25KHz
≥ 40 dB @12.5KHz
Adjacent Channel Power:
≤ -60dB @12.5KHz
Audio Response: +1 ~ -3dB
Antenna Port Spurious:
9KHz to 1GHz: ≤ -36dBm
1GHz to 12.75 GHz: ≤ -30dBm
Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3
Analog Sensitivity: 0.2μV @12dB SINAD
Digital Sensitivity: 0.25μV (BER* 5%)
Intermodulation Rejection: 60-62dB
Sensitivity: 12dB @ -122dB
Adjacent Channel Selectivity: ≤ -60dB @12.5KHz
Co-channel Rejection: ≥ 65dB
Spurious Response: ≥ 70dB
Audio Response: +1 ~ -3dB
Rated Audio Distortion: <5%
Audio Power: 1W
≥ 45dB @25KHz
≥ 40dB @12.5KHz
*BER = Bit Error Rate
