Rugged R1 Business Band Handheld - Digital and Analog

R1
$135.00 $114.75

Easy to grab, hard to let go! This next-generation Rugged R1 Handheld is a workhorse! Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.

Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.



Make sure you are buying the right radio.
CLICK HERE

Easy to grab, hard to let go! This next-generation Rugged R1 Handheld is a workhorse! Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.

Advanced Features that set the R1 apart:

DIGITAL AND ANALOG
Best of both worlds! DMR Digital operation allows you to take advantage of the latest technology, while analog lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

WIDE RANGE OF ACCESSORIES
Go Further! Increase your range, battery life or pair with our Moto and Single Seat kits. The Rugged R1 has a wide range of accessories that will allow you to configure this versatile radio to your specific needs.

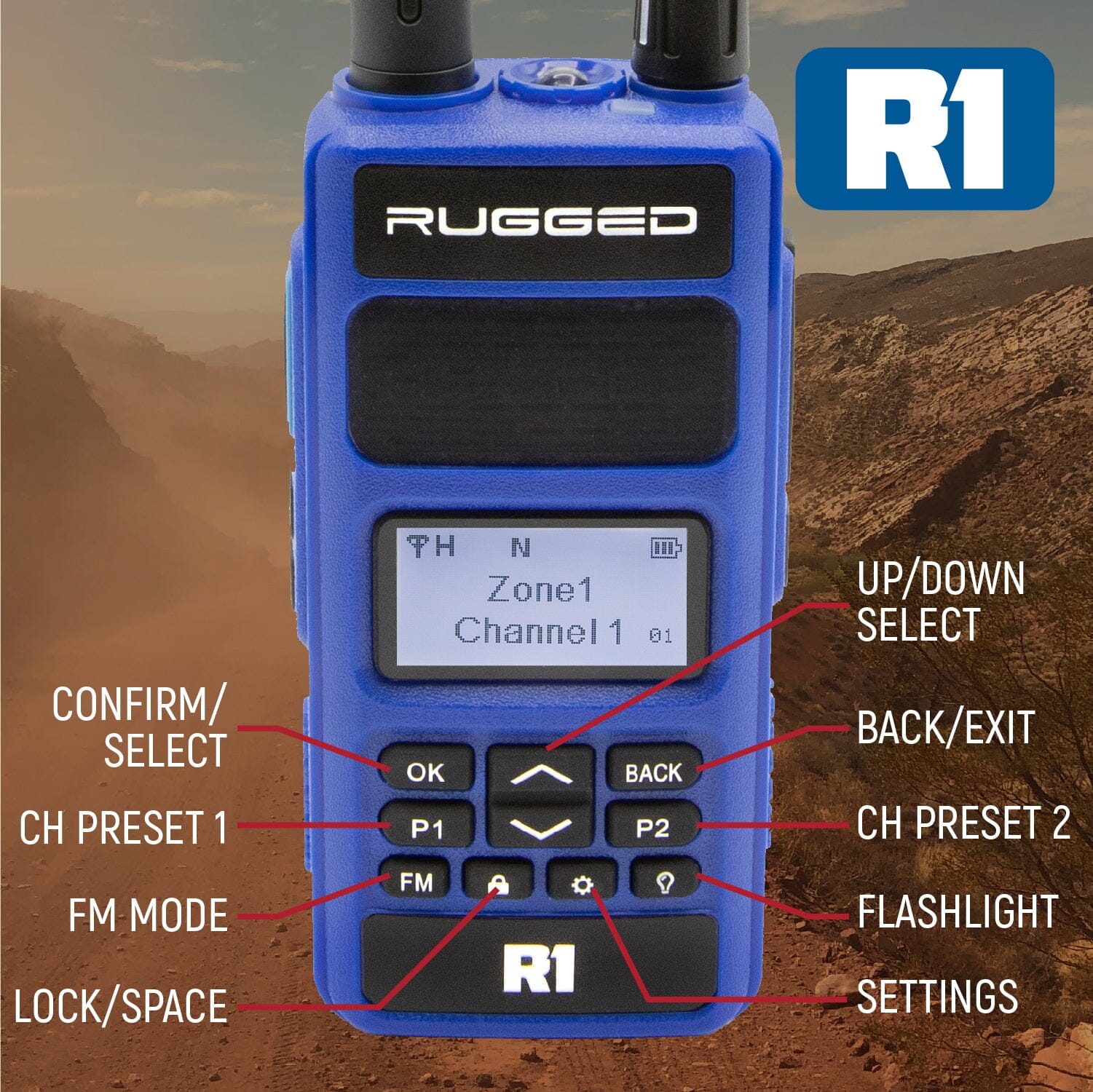

EASY TO USE
Intuitive Controls! A simple keypad layout and intuitive interface make this radio easy-to-use. Customizable P1 and P2 buttons, using RT Systems software, allow you to quickly toggle between the channels of your choice.

Featuring powerful industrial business band frequencies, the R1 is ready to get you talking!

 Features:

  • *Works with all business analog radios and DMR Digital
  • Versatile Dual Band VHF/UHF
  • Crystal-clear digital DMR
  • Large easy-to-read LED Display
  • Easy-to-use, Intuitive Keypad and Interface
  • Text Messaging on digital channels
  • Dual monitor (listen to two channels at once)
  • Performance-tuned antenna

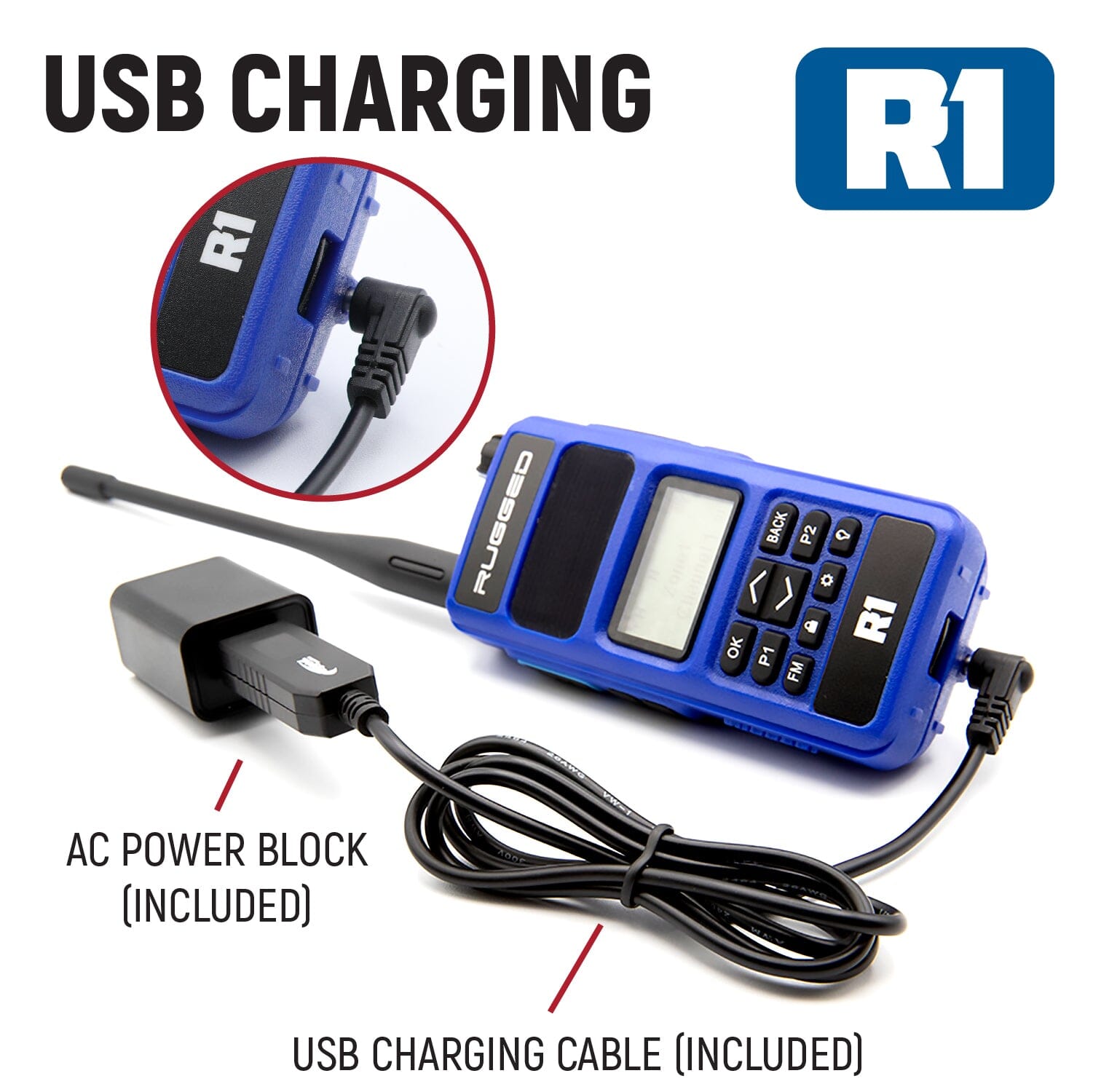

  • Charge-on-the-go USB cable included
  • Rechargeable Li-ion battery
  • Powerful 5-Watt transmitter
  • Works with 2-Pin accessories

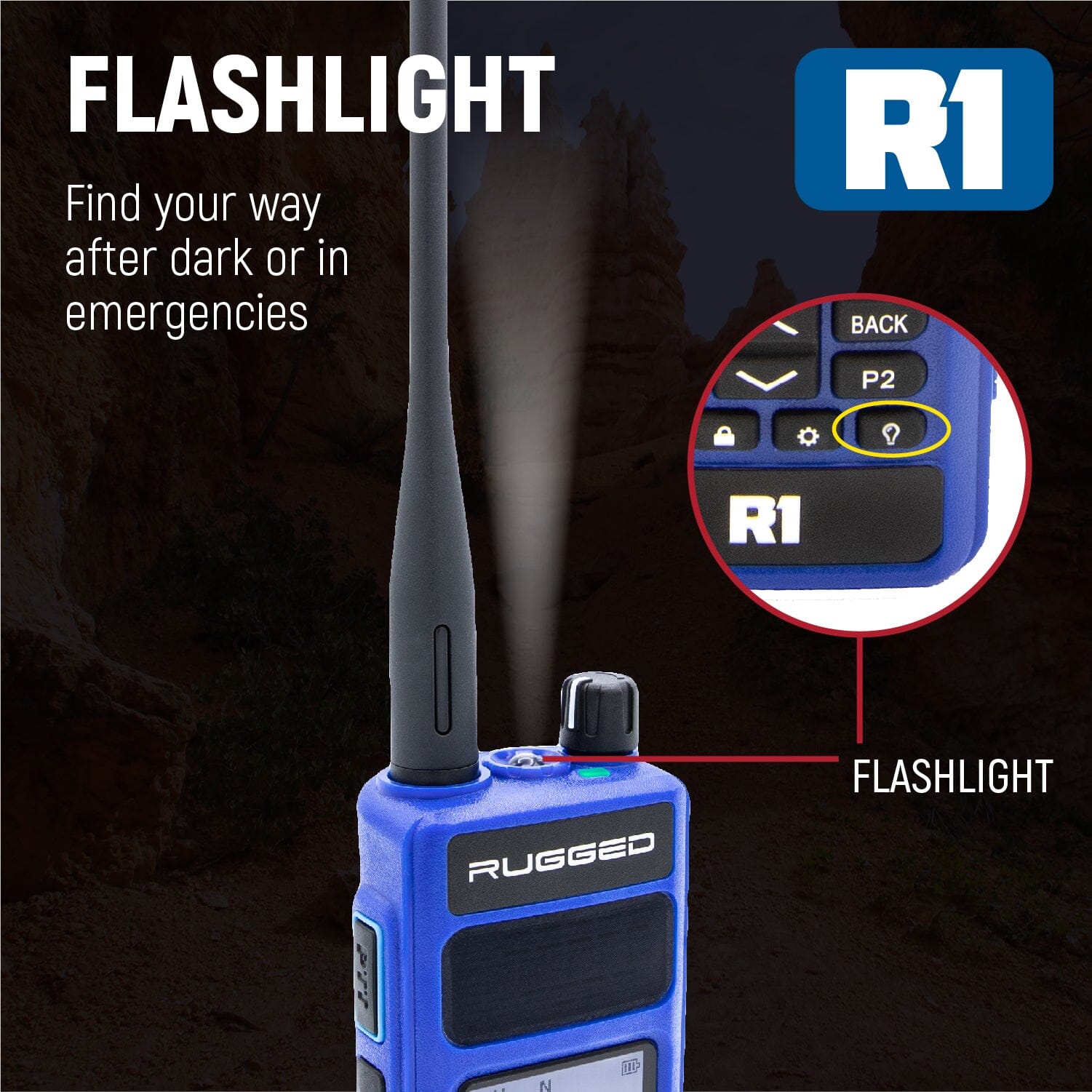

  • Built-in safety flashlight
  • 1 Touch FM Radio
  • Lockable controls
  • 1,024 Channel & 250 Zone capacity

Includes:

  • R1 handheld radio
  • Rechargeable battery
  • USB charging cable / power adapter
  • Belt clip
  • Antenna

    Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

    User Manual: Click Here

    Business License is required. Click here to learn more.

    Read More
    Read Less

    General

    Frequency Range:

    136-174MHz (VHF)

    400-480MHz (UHF)

    Channel Capacity: 1024

    Frequency Stability: ± 1ppm

    Operating Temperature: -20ºC ~ + 70ºC

    Voltage: 7.4V DC

    Weight: 242g (battery and antenna included)

    Dimension (H x W x D): 120 x 60 x 35mm



    Transmitter

    Power (High): 5W

    Power (Low): 1W

    Transmit Current (Analog): ≤ 1.6A

    Transmit Current (Digital): ≤ 0.9A

    Standby Current: 0.15A

    FM Modulation Mode:

    11K0F3E @12.5KHz

    14K0F3E @20KHz

    16K0F3E @25KHz

    4FSK Digital Mode:

    12.5KHz Data Only: 7K60FXD

    12.5KHz Data & Voice: 7K60FXW

    Modulation Distortion: <5%

    Hum & Noise:

    ≥ 45dB @25KHz

    ≥ 40 dB @12.5KHz

    Adjacent Channel Power:

    ≤ -60dB @12.5KHz

    Audio Response: +1 ~ -3dB

    Antenna Port Spurious:

    9KHz to 1GHz: ≤ -36dBm

    1GHz to 12.75 GHz: ≤ -30dBm

    Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3



    Receiver

    Analog Sensitivity: 0.2μV @12dB SINAD

    Digital Sensitivity: 0.25μV (BER* 5%)

    Intermodulation Rejection: 60-62dB

    Sensitivity: 12dB @ -122dB

    Adjacent Channel Selectivity: ≤ -60dB @12.5KHz

    Co-channel Rejection: ≥ 65dB

    Spurious Response: ≥ 70dB

    Audio Response: +1 ~ -3dB

    Rated Audio Distortion: <5%

    Audio Power: 1W

    Modulation Noise:

    ≥ 45dB @25KHz

    ≥ 40dB @12.5KHz


     *BER = Bit Error Rate
