Ready Pack - With Rugged R1 Handheld Radios - Digital and Analog Business Band

Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(87)
R1-READY-PACK
$440.00

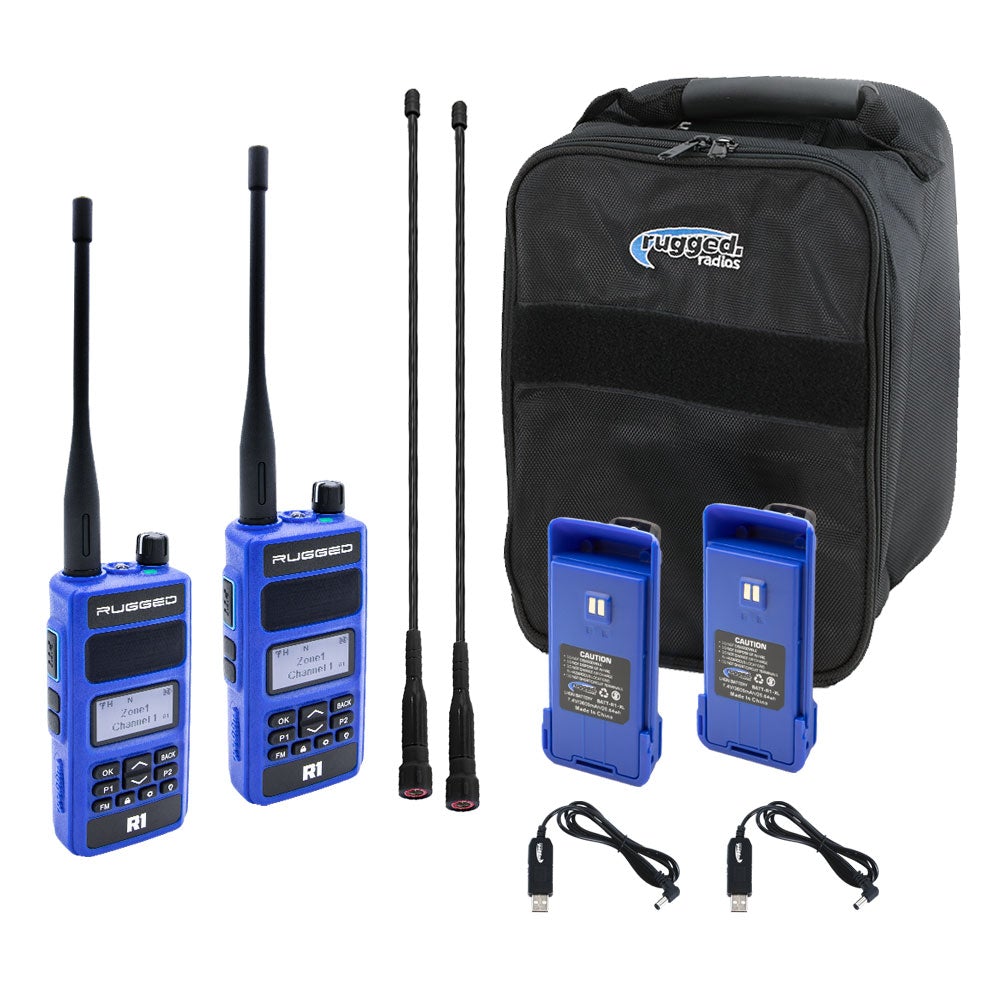

The Rugged Ready Pack features two of our R1 Handheld Radios, and all of the essential accessories so you can maximize the capabilities of your little blue radio!

Accessory Highlights :

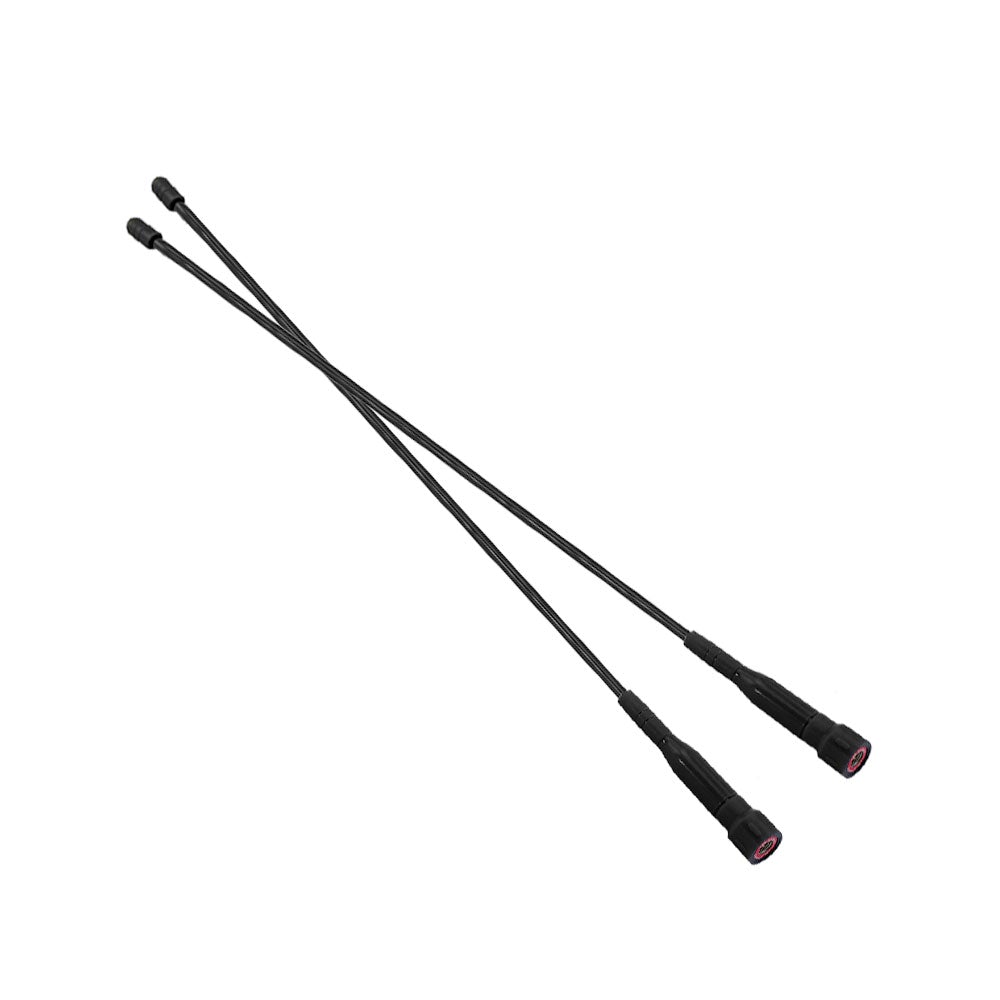

  • XL Antennas for 30% more range

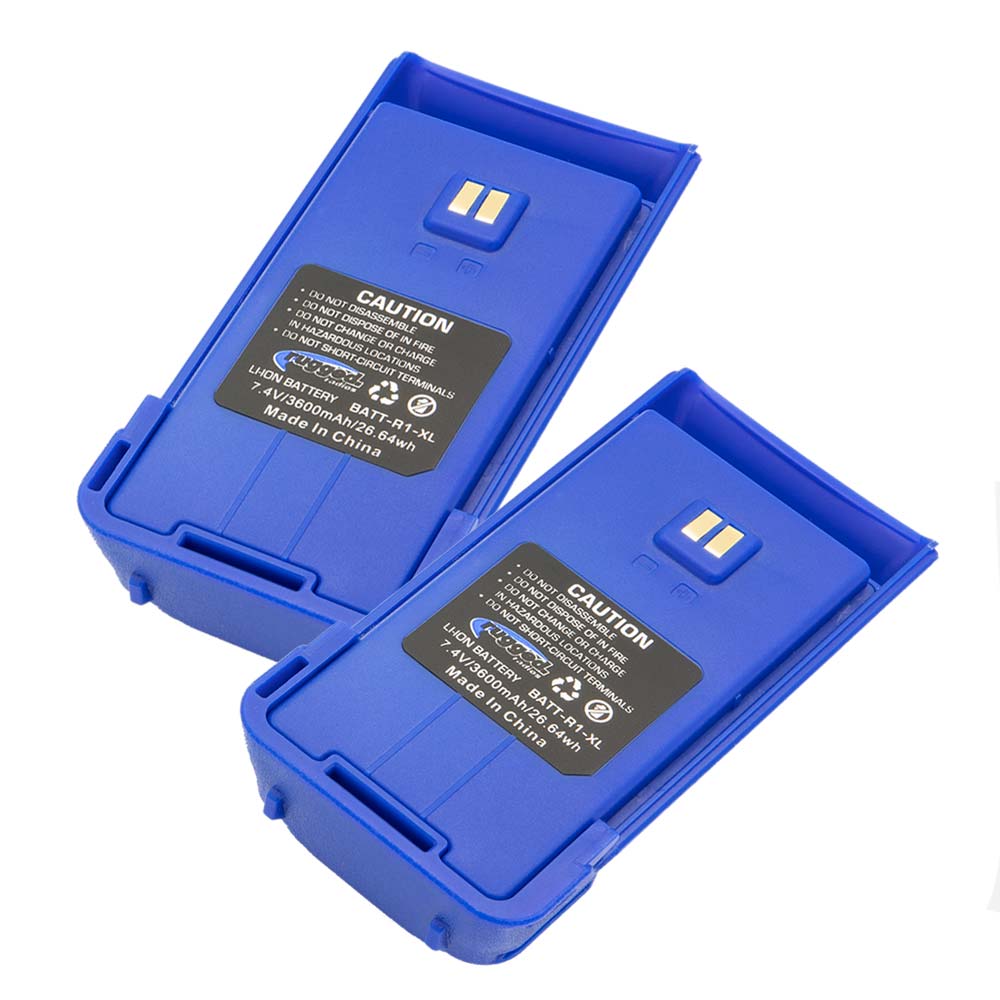

  • XL Batteries for double the battery life

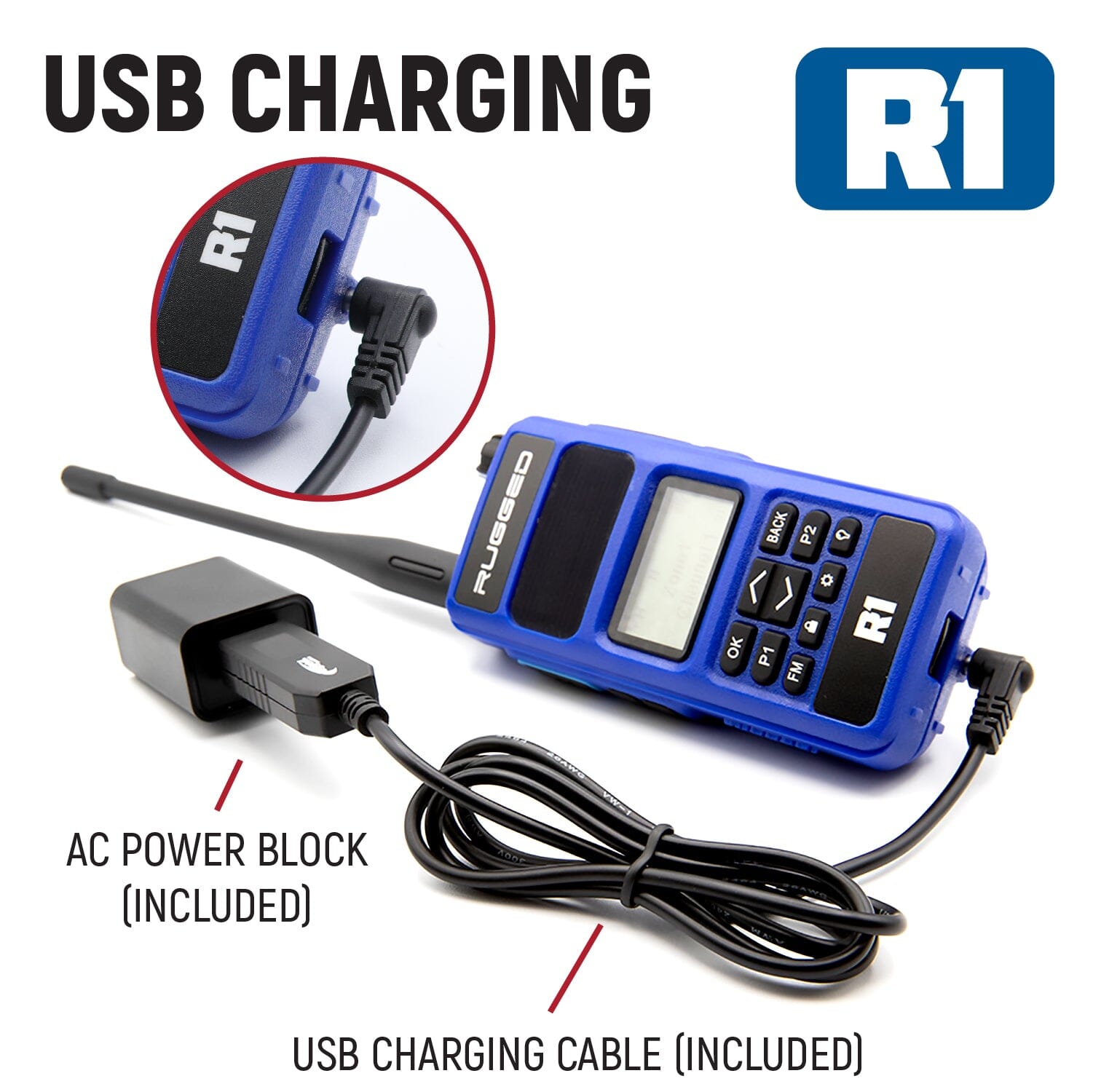

  • USB charging cables to conveniently charge anywhere

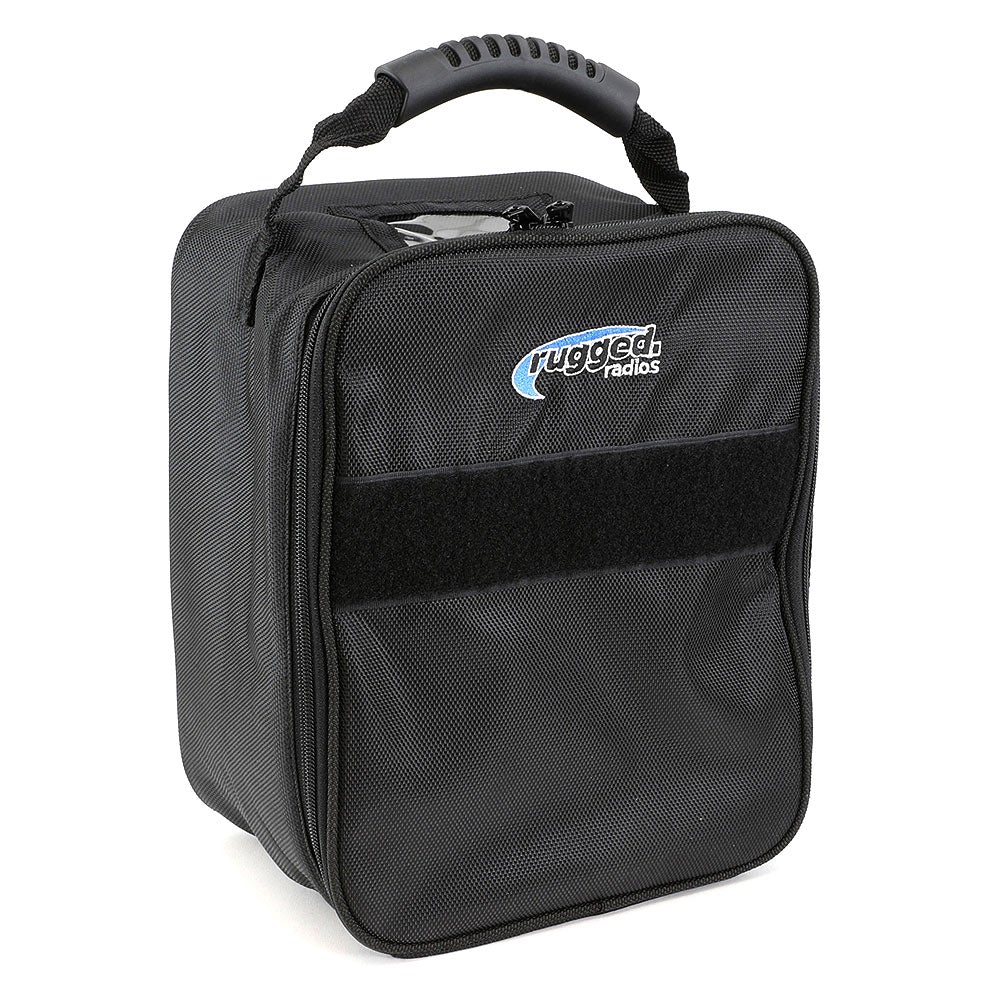

  • Storage bag to carry everything

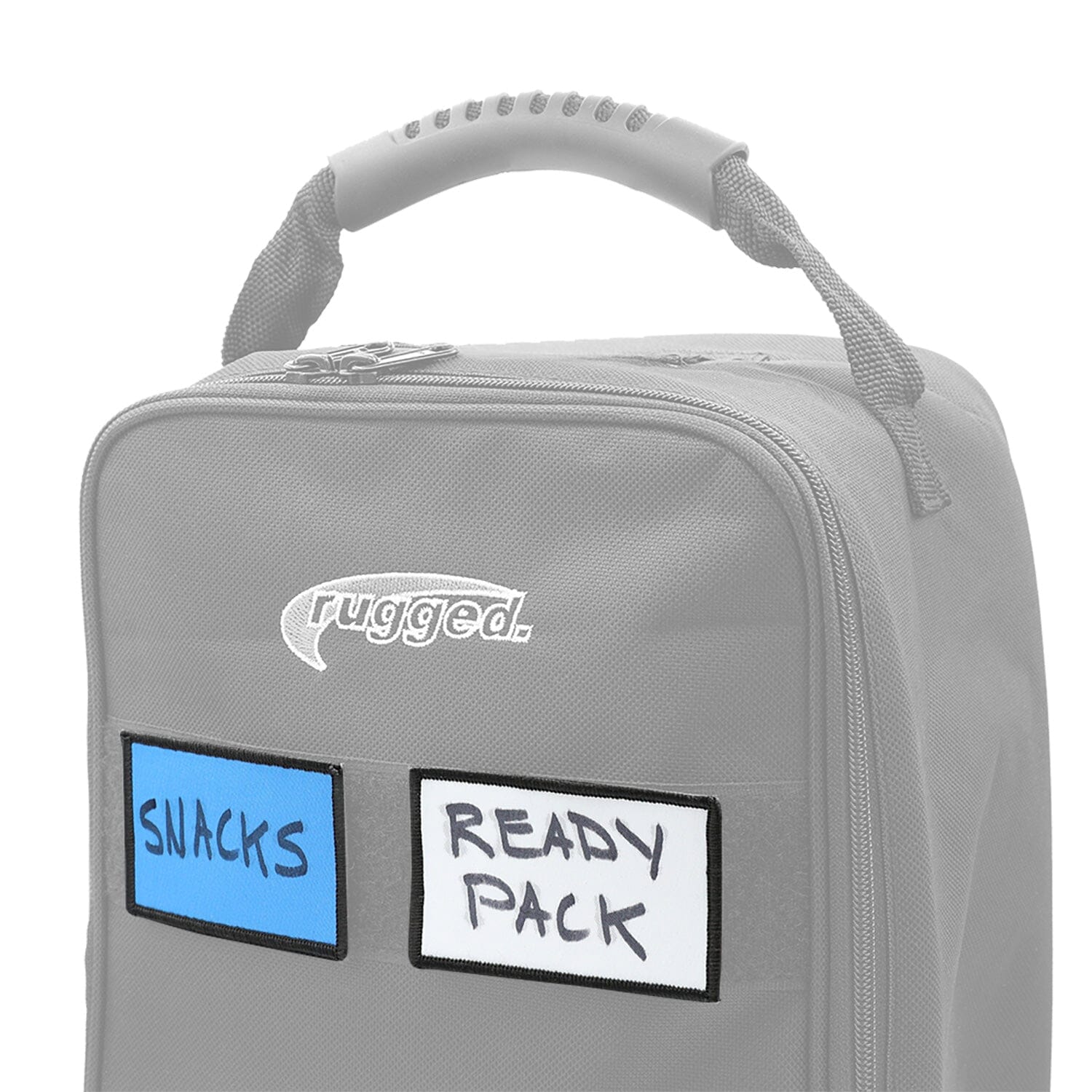

  • Bag ID Kit

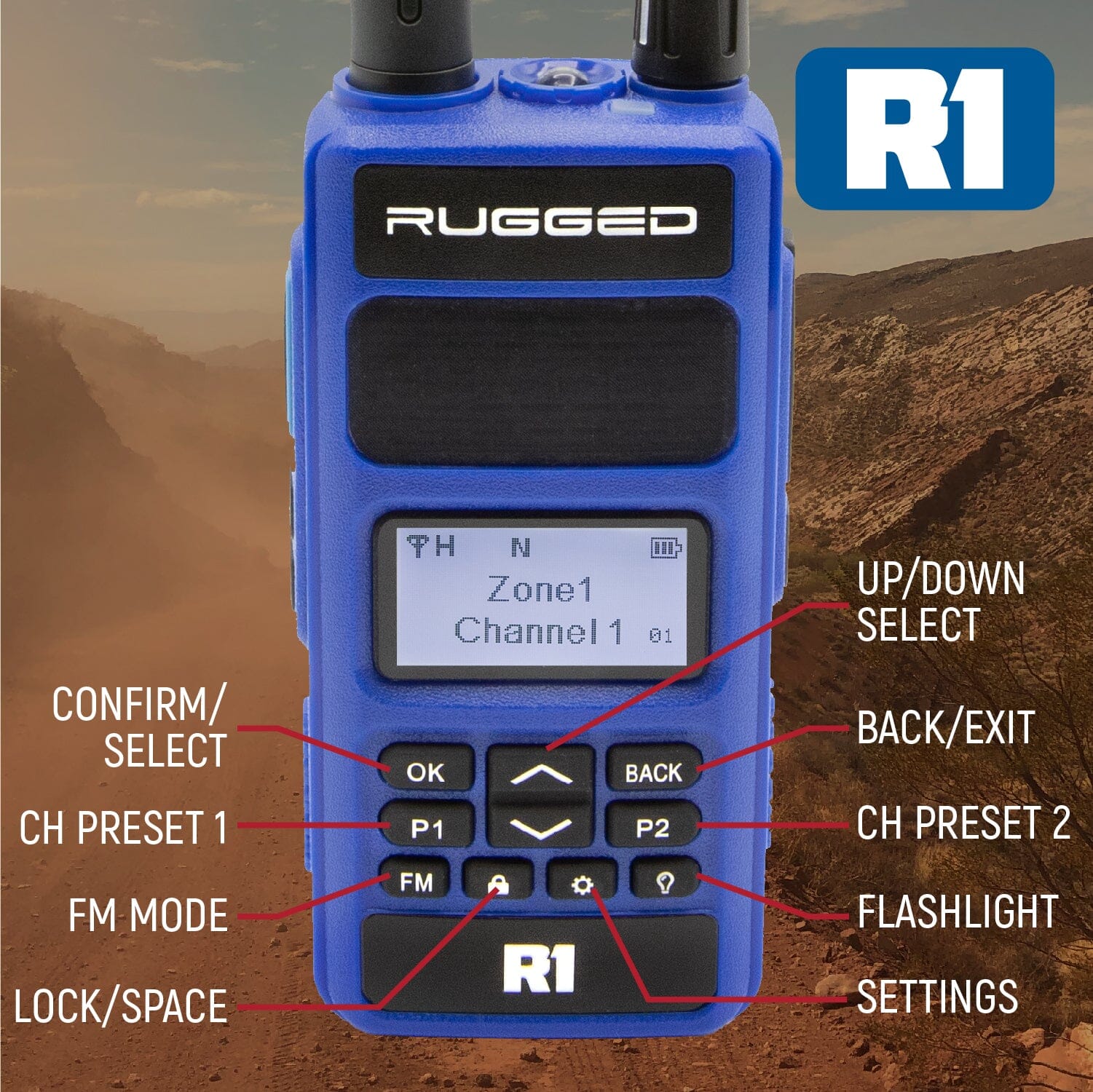

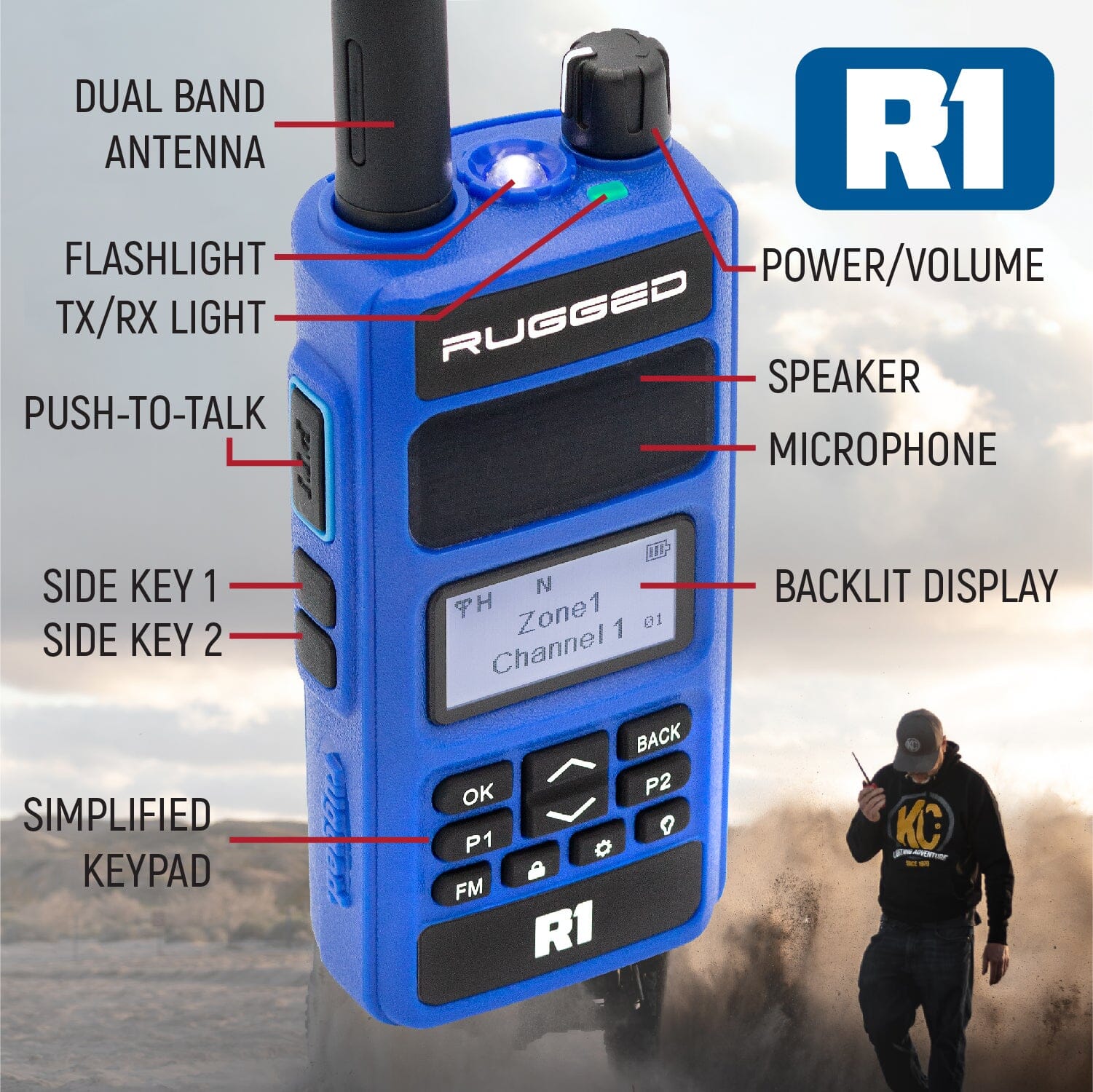

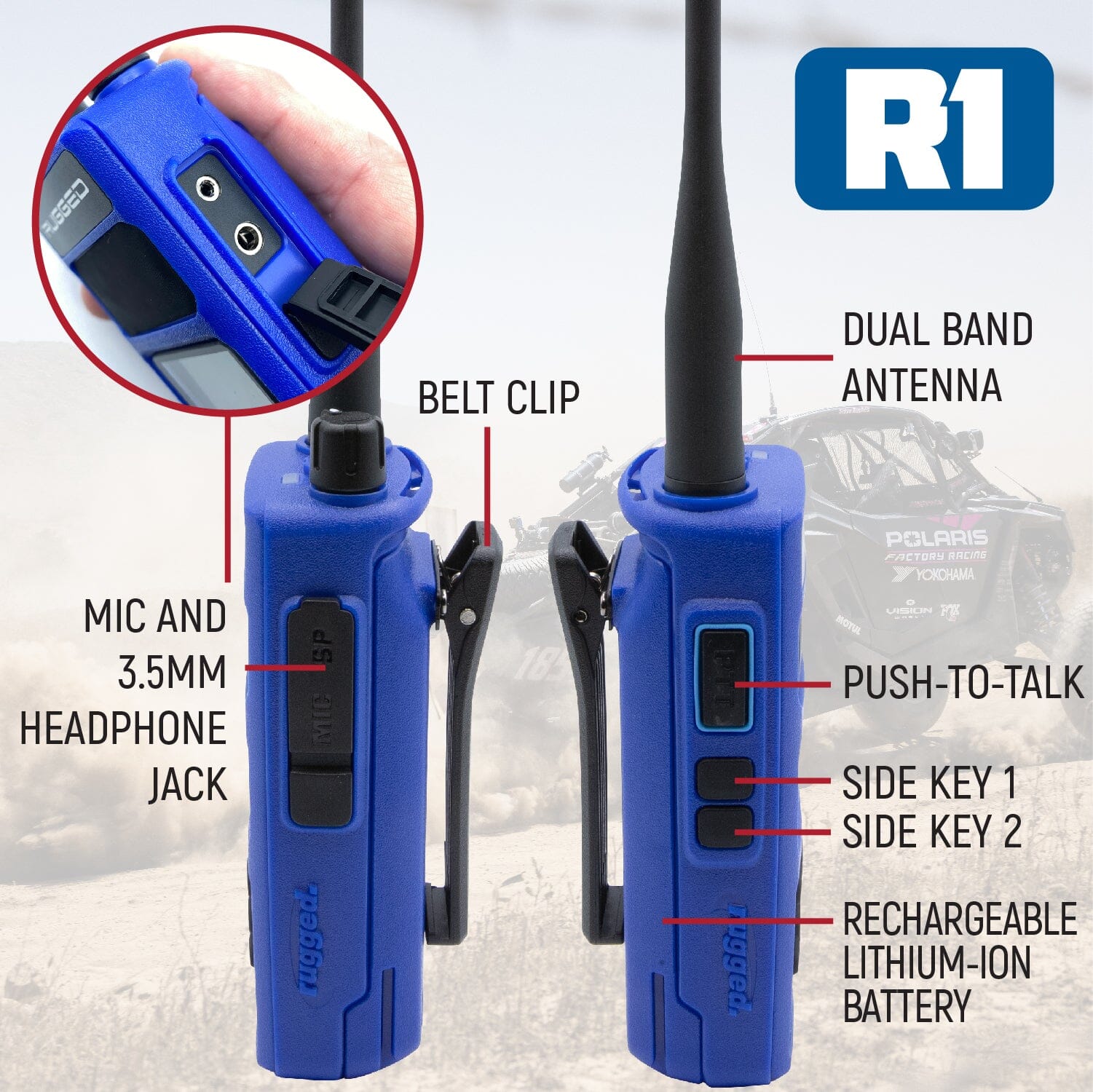

The included dual band R1 Handheld Radio boasts powerful performance in a compact unit that packs a long list of features. Talk to your chase crew, pit, and racers using the included offroad race channels.

This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

Compatibility: This radio works with all VHF/UHF business band radios operating on the same frequencies, as well as digital radios using the DMR platform. Radio models include, but are not limited to: R1, RDM-DB, M1, RDH-X, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

Business License is required. Click here to learn more.

FCC and CE certified

Read More
Read Less

General

Frequency Range:

136-174MHz (VHF)

400-470MHz (UHF)

Channel Capacity: 1024

Frequency Stability: ± 1ppm

Operating Temperature: -20ºC ~ + 70ºC

Voltage: 7.4V DC

Weight: 242g (battery and antenna included)

Dimension (H x W x D): 120 x 60 x 35mm



Transmitter

Power (High): 5W

Power (Low): 1W

Transmit Current (Analog): ≤ 1.6A

Transmit Current (Digital): ≤ 0.9A

Standby Current: 0.15A

FM Modulation Mode:

11K0F3E @12.5KHz

14K0F3E @20KHz

16K0F3E @25KHz

4FSK Digital Mode:

12.5KHz Data Only: 7K60FXD

12.5KHz Data & Voice: 7K60FXW

Modulation Distortion: <5%

Hum & Noise:

≥ 45dB @25KHz

≥ 40 dB @12.5KHz

Adjacent Channel Power:

≤ -60dB @12.5KHz

Audio Response: +1 ~ -3dB

Antenna Port Spurious:

9KHz to 1GHz: ≤ -36dBm

1GHz to 12.75 GHz: ≤ -30dBm

Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3



Receiver

Analog Sensitivity: 0.2μV @12dB SINAD

Digital Sensitivity: 0.25μV (BER* 5%)

Intermodulation Rejection: 60-62dB

Sensitivity: 12dB @ -122dB

Adjacent Channel Selectivity: ≤ -60dB @12.5KHz

Co-channel Rejection: ≥ 65dB

Spurious Response: ≥ 70dB

Audio Response: +1 ~ -3dB

Rated Audio Distortion: <5%

Audio Power: 1W

Modulation Noise:

≥ 45dB @25KHz

≥ 40dB @12.5KHz


 *BER = Bit Error Rate
